Boolean Union (form)

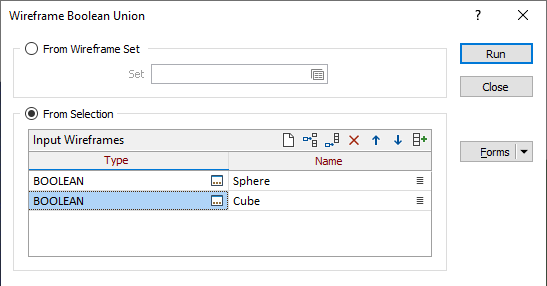

On the Wireframe tab, in the Boolean group: Click Boolean Union (form) to pass multiple wireframes as arguments to a Boolean UNION operation. Input to the function can either be a wireframe set, or the wireframes you have selected in the form.

From Wireframe Set

Select this option to Union the wireframes in a wireframe set. Double-click (or click on the Form Sets icon) to select the input wireframe set.

From Selection

Use the grid to specify the wireframes you want to perform a Union operation on. Use the buttons on the grid list toolbar to Manage the rows in the list.

Type

Double-click (or click on the Select icon) to select a wireframe type. To edit a wireframe type, right-click in the Type column and select Edit Wireframe Types from the right-click menu.

Name

Double-click (or click on the List icon) to select a wireframe of the corresponding type. You can also right-click in the Name column and select Edit Wireframe Attributes.

Options

Use the following options to remove the internal facets and interior walls of combined solids:

Option	Description
Coplanar tolerance	Snaps together portions of the input triangulations that are almost coplanar.
Thin wall tolerance	Helps to clean up "digital noise" when almost coplanar interaction occurs between the inputs.
Short edge removal	Conditions the inputs to remove vertices that are near one another. This is not a post-processing step applied to the result.

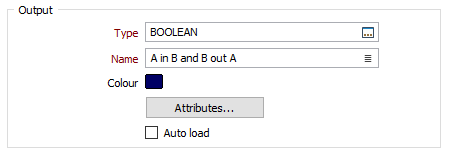

Output

Select the Overwrite input wireframe option if you want the result of the process to be applied to the Input wireframe. If this option is selected, the following Output prompts will be disabled:

Type and Name

Specify the type and name of the Output wireframe.

Colour

Specify a default display colour for the Output wireframe.

Attributes

Click the Attributes button to set Wireframe Attributes for the wireframe output.

User-defined attributes may be mapped against the fields in the Input file. It is also possible to specify a default value for each attribute. Default values are used when a corresponding value in the Input file is either missing or is not mapped.

Auto load

Select this option to load the generated output in Vizex. The default draw style for an auto-loaded wireframe is 3D Shaded.

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.
