Symbology Numeric Legend Item

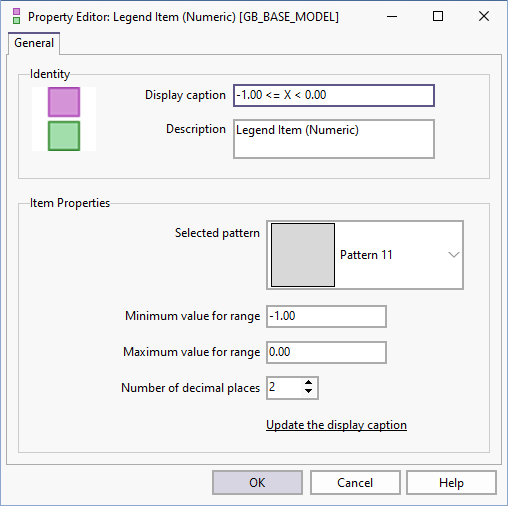

The Symbology Set Numeric Legend Item Property Editor is opened when you click the Properties button when a legend item is selected in the Symbology Numeric Legend Property Editor. See: Symbology Numeric Legend

Identity

The Display caption can be generated automatically based upon the range values you specify as part of the item's properties. If necessary, enter a brief Description for the item.

Selected pattern

The pattern currently allocated to the item is shown. You can change the pattern by selecting another item from the drop-down patterns list.

Range

Enter a minimum value and a maximum value (and also the number of decimal places) to define the allowable range for this bin.

Number of decimal places

The precision to be used in selecting ranges.

Update the display caption

Having entered or changed the range values, click this link to automatically update the display caption.
