Import Surfaces & Designs

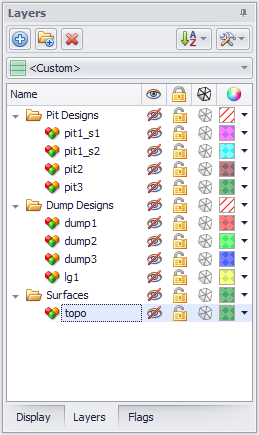

Use the Layers panel to import Pit and Dump designs and topographic surfaces.

1. To add layers in the Layers panel, use the blue plus icon.

2. In the import window that opens select the applicable files in supported formats.

1. When dealing with larger surfaces, after you have confirmed the files to be imported, a dialogue box will appear asking you to specify the triangle count and the Decimation method.

3. To store data more clearly, we always recommend organising files into folders with self-explanatory names.

4. You can change the order in which folders and their items are displayed by dragging and dropping them. The place of insertion is pointed by blue arrows.

5. Use the eyeball toggle to show/hide designs display in the Viewport.

For more information on using the Overlays panel tools, see: Layers/Overlays Panel
