Triangulations

This topic provides a summary of new features and enhancements related to Layer Triangulations and Triangulations.

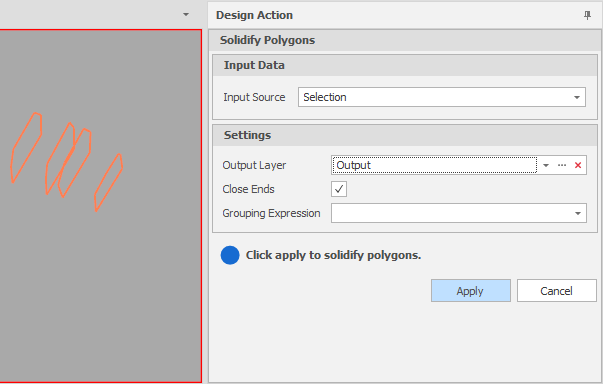

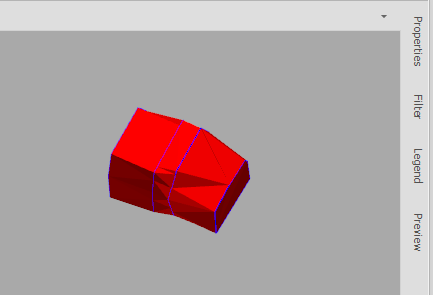

On the Triangulation tab, in the Add group, you can now select a design action to solidify a set of input polygons to one or more solids. (Ctrl+P,S)

An option to close the ends of the generated solid is provided.

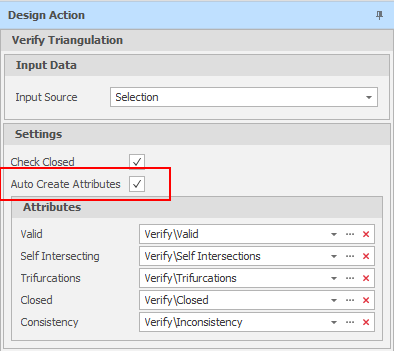

On the Triangulation tab, in the Utility group, when you click Verify Triangulation to verify a set of triangulations, you can now select an option to Auto-create the attributes to which the results of the verification process will be written.

A check for inconsistent triangle windings has also been added.
