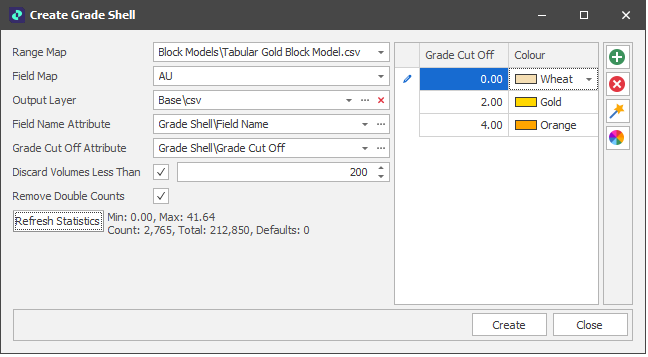

Create Grade Shell
In the Block Model Interrogations Setup window, it is now possible to generate a layer with triangle meshes per material bin or grade interval. In the Block Model Interrogations window, right-click on a Block Model Interrogation and select Create Grade Shell.

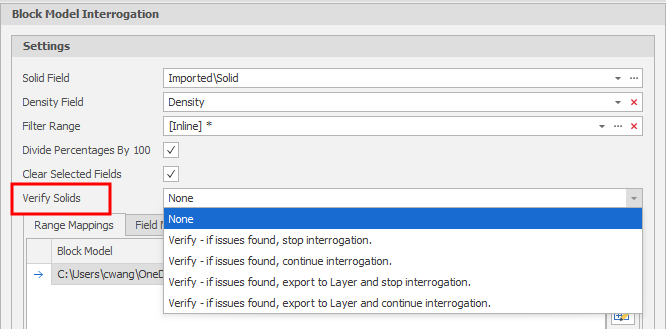

Verify Solids
In the Block Model Interrogations Setup window, the block model verification process and the way invalid or inconsistent solids are dealt with has been improved. You can now export invalid and inconsistent solids to a design layer and write any findings to the corresponding solids.

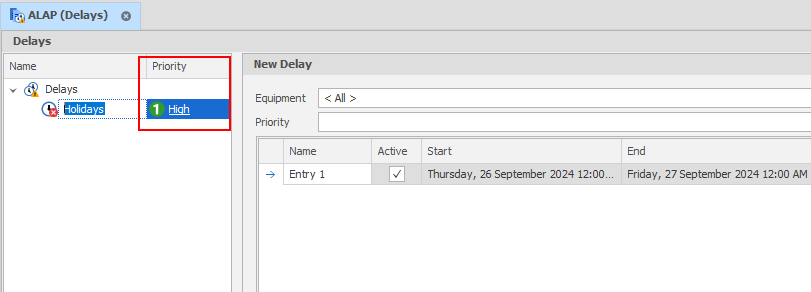

Delay Priorities
On the Home tab, in the Setup group, when you select More > Delays to view and manage the delays that affect the schedule, if there are multiple delays starting at the same time, delays can now be prioritised to ensure that some delays take precedence over others.
When you add or edit a delay, an increment/decrement control can be used to adjust the Priority. The higher the number, the lower the priority (1 = High).
In Settings | All Settings, a scheduling_delay_picking_algorithm setting defaults to "V2". Set this value to "V1" to enable the old behaviour (Priority values are ignored. If there are multiple delays starting at the same time, there is no guarantee which delay will be picked).

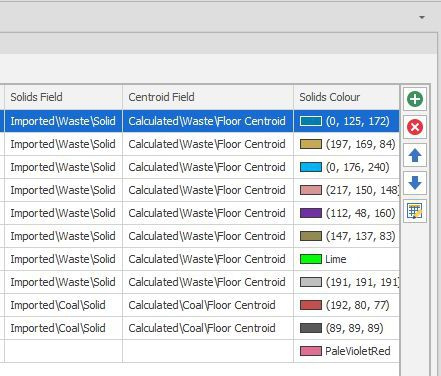

Process Colours
On the Home tab, in the Setup group, when you select Processes to manage the productive and the non-productive processes of your schedule, you can now set a colour for each productive process solid, making them easier to identify and select.
