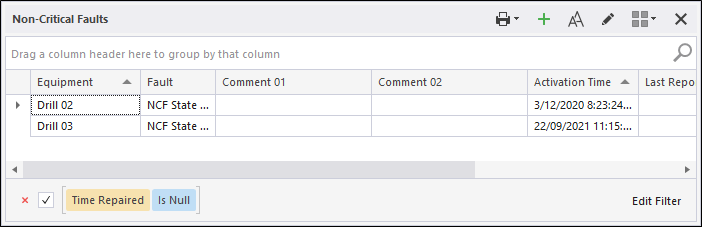

Non-critical Faults Panel

In Data Acquisition you can record non-critical maintenance events (faults) against items of equipment. Non-critical faults are typically minor breakdown or maintenance issues that are not serious enough to prevent an item of equipment from operating.

While faults (such as a cracked tail light or a cracked windscreen) may not be critical, they should be addressed at the earliest opportunity. Any number of non-critical faults can be active against a unit of equipment at any one time.

To setup a Non-Critical Faults panel:

1. Click on the Panels tab of the Display pane.
2. Right-click on Non Critical Faults and select New Panel. from the right-click menu.
3. Enter a Name for the panel.
4. Select the Equipment units for which non-critical faults are to be recorded and displayed. Choose All Equipment, choose a predefined equipment Group, or select equipment units from a list.

A new “Non Critical Faults” panel will be added to Data Acquisition.

To View Non-Critical Faults

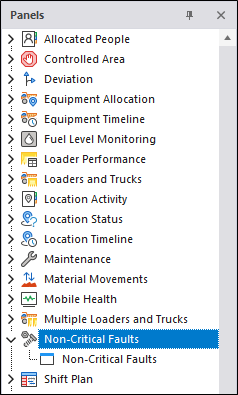

1. Click on the plus/minus box to expand the Non Critical Faults node in the Panels tab of the Display pane.

The panel you have created will be listed underneath.

2. Click the mouse on the name of the panel and drag and drop it onto an open Canvas.
3. To view the panel in future, simply open the canvas.
4. To change the view in the panel, use the Panel toolbar to change the Display mode.
