Automatic location status changes

An equipment or location status change is often tied to another event, such as the allocation of equipment to a location, or the entering of a measure.

Sometimes, changing the status of a primary equipment unit will affect the status of a secondary unit. If a carrier breaks down, for example, all attachments assigned to that carrier become non-operational.

To reduce the amount of data entry for Data Acquisition and Mobile operators, rules can be established to automatically change the status of equipment and locations as events occur during the shift.

Status Selection Mode

How the status is changed when a status change event is triggered, will depend on the chosen Status Selection mode. Modes are configurable per site. Typically, there are three modes:

Automatic - no prompt

If the mode is set to automatic - No prompt. The rule will define a single status which will automatically be set with no user interaction.

Automatic - prompt

If the mode is set to automatic – Prompt then a single status will be defined. A Yes/No message box will ask the user whether they want the defined status to be set.

Note: Location Measure rules also support an Automatic - Conditional Prompt mode.

Automatic - Conditional Prompt

Automatic - Conditional prompt mode works the same as the Automatic - prompt mode, except that the message prompt is displayed only if the condition is satisfied (See Location Measure Rules).

Manual

If the mode is set to manual selection, a list of states will be presented to the user. The user will have the option to cancel the selection and therefore not change the status.

Location Status Rules

Rules that govern how location status changes will be triggered during the shift, are configured in a Location Status Rules reference group in the Pitram Portal.

To create a new rule:

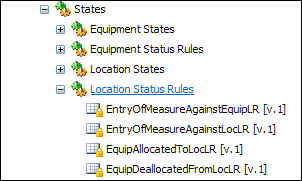

  1. Select and check out a Location Status Rule reference table.

  1. Click the New button.

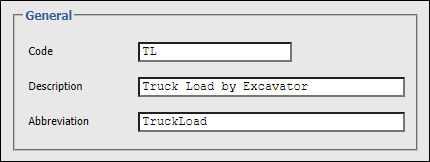

  1. Enter a unique code, a description, and an abbreviation for the rule.

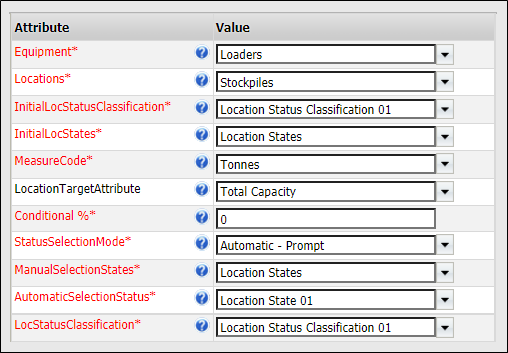

  1. Enter the required parameters of the rule. The parameters required will vary depending on the rule.

The following rules can be configured in order to trigger a location status change. Each rule defines the Location Status Category to which it applies (e.g. Ground Support).

Entry of Measure Against Equipment

This applies to a single piece of equipment allocated to a location. When a measure is entered against the equipment, it signals the end of a location cycle.

For example, entering “HolesCharged” against a charge up wagon may cause the status of the location to change to “Ready To Blast”.

  1. Select the equipment to which the rule applies.
  2. Select the locations to which the rule applies.
  3. Select the location status category the location must be classified as, prior to the rule being applied.
  4. Select the location states that the location can be in prior to the rule being applied.

In most cases, this setting will be set to 'All States'.

  1. Select the Measure Code of the measure that triggers the status change.
  2. Select the Status Selection mode to be applied when the status change is triggered.
  3. Select the Manual Selection states from a list of valid states. These are the states that can be selected manually be an operator when the Status Selection mode is set to Manual.
  4. Select the Automatic Selection status from a list of valid states. This is the status that the location will be set to when the Status Selection mode is set to Automatic.
  5. Select the location status category the location will be classified as when the rule is applied.

Entry of Measure Against Location

This applies when a measure is entered directly against a location.

  1. Select the locations to which the rule applies.
  2. Select the location status category the location must be classified as, prior to the rule being applied.
  3. Select the location states that the location can be in prior to the rule being applied.

In most cases, this setting will be set to 'All States'.

  1. Select the Measure Code of the measure that triggers the status change.
  2. Select the Status Selection mode to be applied when the status change is triggered.
  3. Select the Manual Selection states from a list of valid states. These are the states that can be selected manually be an operator when the Status Selection mode is set to Manual.
  4. Select the Automatic Selection status from a list of valid states. This is the status that the location will be set to when the Status Selection mode is set to Automatic.
  5. Select the location status category the location will be classified as when the rule is applied.

Equipment Allocated / De-allocated To a Location

The following parameters must be set when creating a rule for either equipment allocated to a location, or for equipment de-allocated from a location:

  1. Select the locations to which the rule applies.
  2. Select the equipment to which the rule applies.
  3. Select the location status category the location must be classified as, prior to the rule being applied.
  4. Select the location states that the location can be in prior to the rule being applied.

In most cases, this setting will be set to 'All States'.

  1. Select the Status Selection mode to be applied when the status change is triggered.
  2. Select the Manual Selection states from a list of valid states. These are the states that can be selected manually be an operator when the Status Selection mode is set to Manual.
  3. Select the Automatic Selection status from a list of valid states. This is the status that the location will be set to when the Status Selection mode is set to Automatic.
  4. Select the location status category the location will be classified as when the rule is applied.
