Synchronise data selections

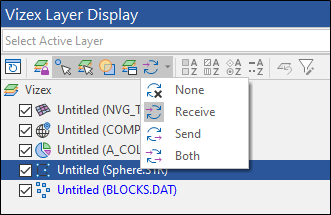

Right-click on a layer in the Vizex Layer Display pane and select a Sync Selection option to synchronise your data selections between different (Vizex, Chart, and File Editor) views of the same data.

To synchronise the selections in multiple layers, select those layers in the Vizex Layer Display pane and choose an option from the Sync Selection tool menu.

Option		Description
None		Sync Selection options for the displayed data are turned off. Selections are not being sent or received.
Receive		When someone else has changed the data selection in another synced view and Sync Selection Receive is enabled, the selections in the current view are updated.
Send		When data selections are changed and Sync Selection Send is enabled, those selections are sent if the same data is open in another synced view.
Both		Both Sync options for the displayed data are turned on. The current view is sending selections out and receiving selections in.

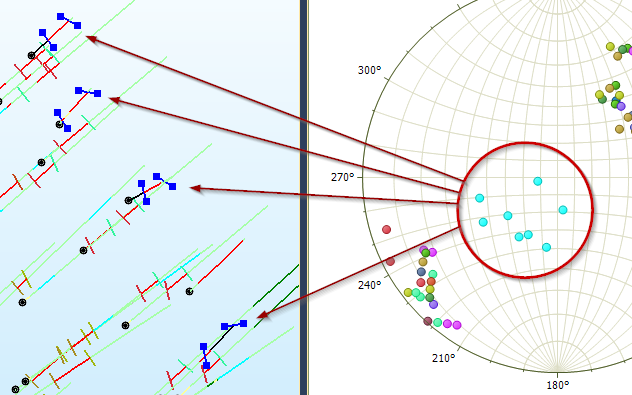

For example, a Stereonet chart can be selection synchronised with Vizex whenever the same file is loaded in both windows. This makes it easy to click a structure in either window and see it highlighted in the other, allowing trends or errors to be more easily identified in the real world.

Data selections can only be sent and received between synchronised layers that exist in different instances of Vizex.
