Pit Polygons

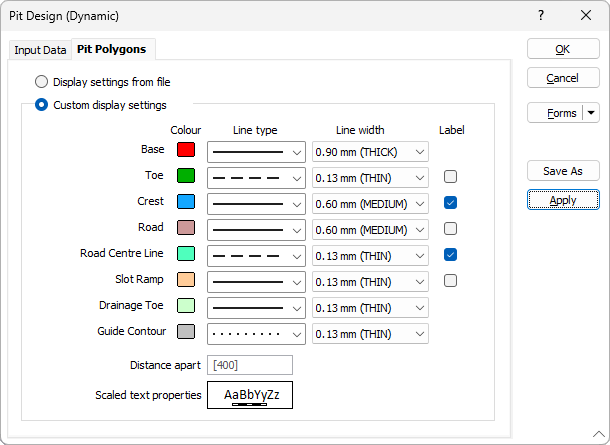

Line colour, type, and width settings on the Pit Design | Pit Polygons tab are set by default when the form is cleared (or used the first time). These default colours have been tested for clarity against both a white and a black background.

You can select the Display settings from file option to use the settings from the input file, or select Custom display settings and configure the following:

Type	Description
Base	A Base string is the perimeter string for the base of the pit design.
Toe	A Toe string is the bottom string of a pit or stockpile.
Crest	A Crest string is generated as the pit or stockpile expanded. A crest (with the exception of the final crest) has a corresponding Toe string at the same Z or elevation.
Road	A Road string is generated when you add a Road. A Start point is defined on a Crest or Toe string.
Road Centre-line	You can choose to display a road centre-line (on the Input tab). The centre-line is the line along which the gradient and the length of the road are calculated.
Slot Ramp	A Slot Ramp string is generated when you add a Slot Ramp. A Slot Ramp is an alternative to a spiral road and is suited to shallow pits.
Drainage Toe	A Drainage Toe string denotes the location of water drainage at the base of a bench or a slope.
Guide Contour	A Guide Contour string between successive Toes and Crests can be used to denote benches.

Specify a line colour, line type and line width for each type of string included in the pit outline:

Colour

Double-click on each colour icon, to select a colour that can be used to differentiate between the different types of strings in the pit design display.

Line type

Select a line type. A preview of each line type is shown in the drop-down list. A variety of solid, dotted, and dashed line styles are available for selection.

Line width

Select a (THIN, MEDIUM, THICK, or custom) line width from the drop-down list. An extensive selection of custom widths (in millimetres) are available for selection.

Label

When selected, indicates that the configured label should be displayed on the pit design.

Distance Apart

Enter the distance in grid units between the string and the displayed contour label.

Scaled Text Properties

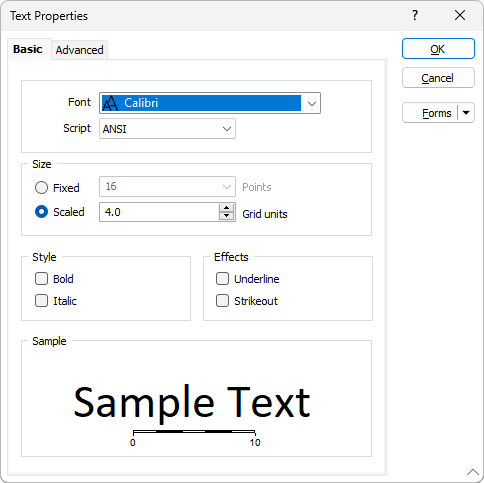

Double click to set the Text Properties for the displayed labels.

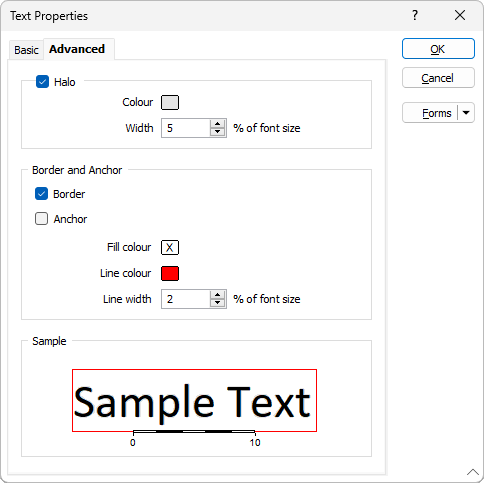

On the Advanced tab of the Text Properties form, you can set the Halo, and Border and Anchor, settings for the text labels.

Any changes you make to the Custom display settings will be reflected in design if you click Apply in the Pit Design form.

If you click OK, the changes will be applied and the form will close. You can click Cancel to close the form without applying any changes.
