Grids to XPAC

On the File tab, in the Export group: Select Export | Grids to XPAC to generate a composite grid file that can be imported directly into XPAC Scheduler.

The composite grid file may have, as an example, X, Y and Z values for a set of values such as CV, ASH, Volatiles, and Sulphur. These composite grids are easy to create from drillhole data.

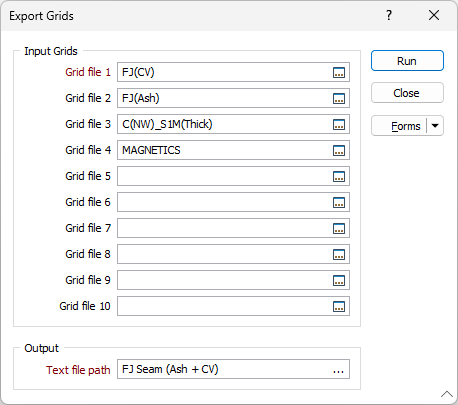

Input Grids

Up to 10 Micromine grid files (at least 1 is mandatory) can be specified as inputs to the process.

The grid node size, origin and extent is determined by the first grid, from which all other grids are sampled. This means that subsequent grids do not need to have the same size, origin, or extent. If any portion of a subsequent grid falls outside the extent of the first grid, that portion is ignored by the export process.

Output

A text file with an .ASC file extension is generated, which is suitable for import into XPAC Scheduler.

XPAC Import File Format
