Pierce Points

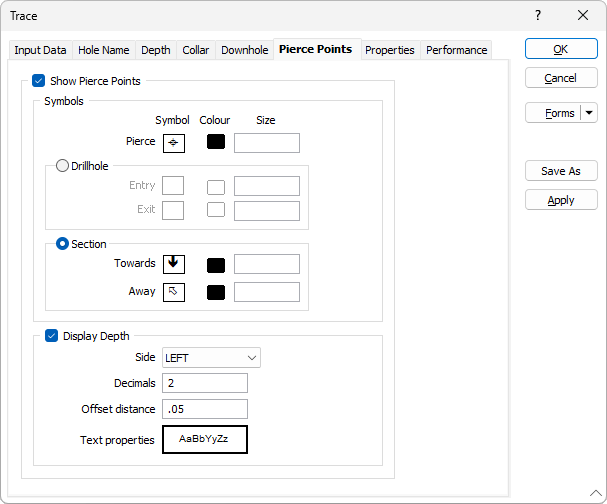

Select the Show Pierce Points check box option on the Pierce Points tab if you want to display pierce points along the drillhole trace.
Symbols
Double-click on the icons to select a symbol and colour for the pierce points and optionally specify a size factor that will be used to control the symbol size. If left unspecified, the default is 1.
Drillhole

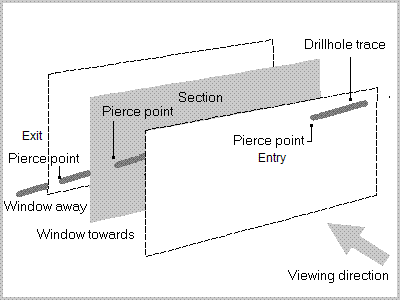

You can select different symbols to show the drillhole Entry and Exit points.
Section
Alternatively, select different symbols to show whether the drillholes enter/leave the displayed section from the Towards side relative to the Away side.
Display Depth
If you want to display the depth of the drillhole trace, select this option.
Side
Pierce points can be displayed on the LEFT or RIGHT of the drillhole trace.
Decimals
Specify how many decimal points to display.
Offset distance
Define the distance, in grid units, that the labels will be offset from the trace. The distance is measured from the character nearest the trace. The default is 1.
Text Properties
Double-click on the Text Properties Preview box to select a font and set text properties.
