Mine Design

Dynamic Pit Design

A completely new Pit Design (Dynamic) module has been created for Micromine Origin & Beyond 24.5.

The Dynamic Pit Design layer allows you to make a new pit design quickly and make changes on the go, without starting the design from scratch.

You can add ramps and drag them into position to recalculate the entire pit. If you change the default berm width, the whole pit will be automatically reset accordingly.

The new Pit Design layer supports the addition of multiple bases, and guide wireframes can be used to add bases to design the pit as needed.

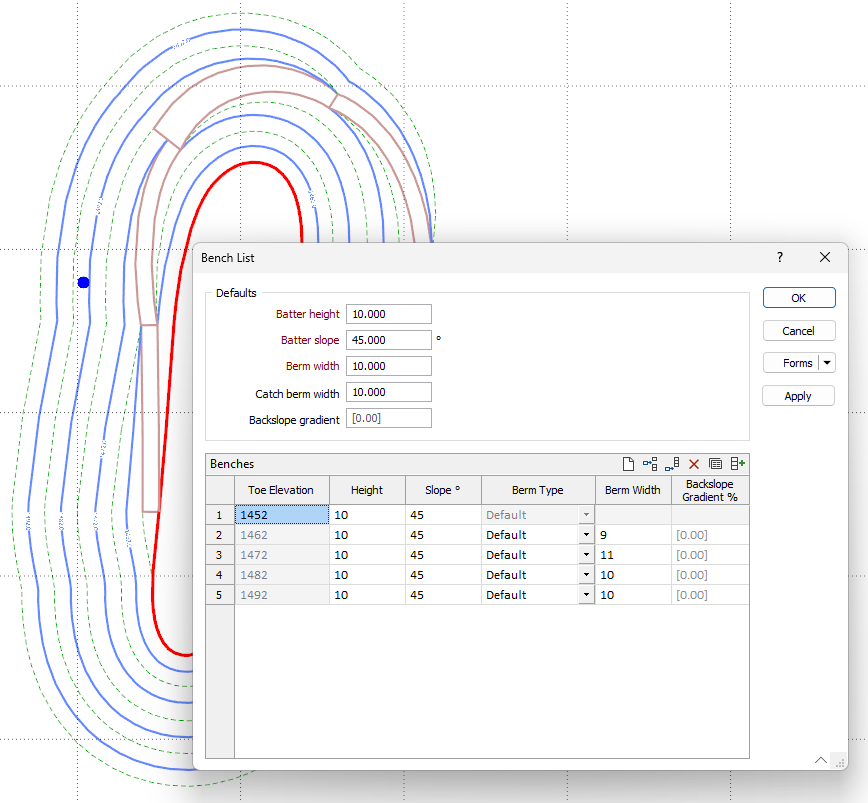

The Bench list tool allows you to start a bench with just a single string, or even with nothing. If you digitise a string, it will be added as your first bench.

Bases can be smoothed quickly and the whole pit will be accurately recalculated. If you edit a base, everything above it will be affected; without the need to manually change the properties. Bases do not have to be added in order to modify the pit.

The available tools for Pit Design (Dynamic) include:

• Parameters

• Build

• Active Bench

• Editing

• Pit Road

• Generate

For information on the new feature, see Pit Design (Dynamic)
