Wireframes

Incremental Solids

On the Wireframe tab, in the Operations group, you can now select an option to create Incremental, cumulative and/or remainder solids from a list of surfaces clipped to specified bounds and (optionally) topography.

The outputs of this process can be used as inputs to a new Bench Solids tool.



Automatic Colour Set

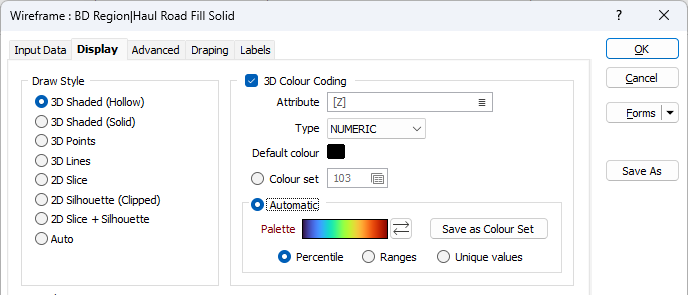

Wherever colour coding is applied as part of your wireframe display options, you can now select a palette and automatically apply colour ranges to the default [Z] attribute or a chosen attribute.

A mode of calculation can be selected and the option to Save the result as a Colour Set is provided.



Drape Image

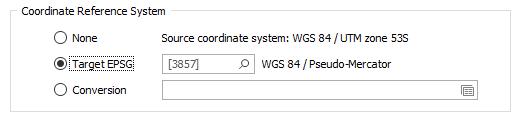

On the Draping tab of the Display Wireframe form, a Target EPSG conversion option can now be selected.

This option is only enabled if the Input file contains recognisable information about the coordinate system that it was registered in. The EPSG number and name of the source coordinate system are provided if they are recognised.

If the Target EPSG option is selected, then the image is converted from the Source coordinate system to the coordinate system defined by the Target EPSG code. It is possible to search for the correct coordinate system by pressing the search icon (magnifying glass).



Boolean Operations

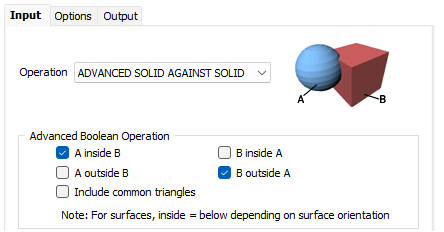

Options and Output parameters are now available for selection on their own tabs of the Wireframe Boolean form.
