Application

This topic provides a summary of new features and enhancements that affect the operability of the Application as a whole.

Numeric Colour Assign

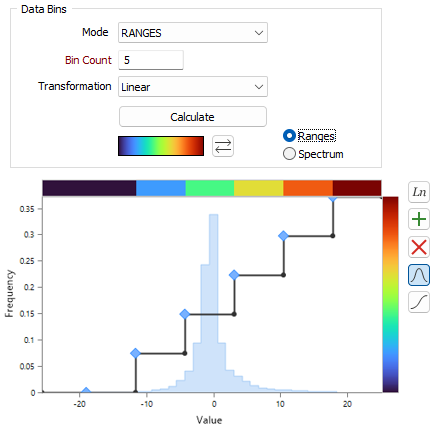

When a Numeric Colour Set is used to assign colours into numeric ranges, a frequency chart now allows you to interactively adjust the curve between the specified ranges/spectrum and the palette. The palette you have chosen is shown vertically at the right of the chart. The colour band that runs horizontally above the chart shows how the range/spectrum will look based upon the colours you have chosen.



Automatic Colour Set

Wherever colour coding of a data set is possible, as an alternative to applying an existing colour set, you can now select a palette and automatically apply colour ranges:

A mode of calculation can be selected and the option to Save the result as a Colour Set is provided. Note that the auto colour set controls are disabled when a Colour field is unspecified.



Text Assign

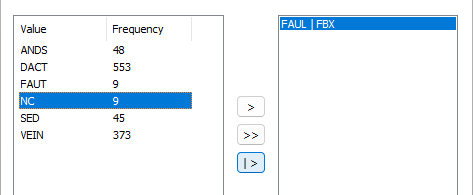

The appearance and behaviour of the Text Assign form has been greatly improved. When you make a contiguous or non-contiguous selection, the selected items can now be added to a selected group, or if no group is selected, a new group.

A new Case sensitive grouping option can also be used to group by case-sensitive values. If you want to ensure that text values are matched and grouped irrespective of case, unselect the check box.

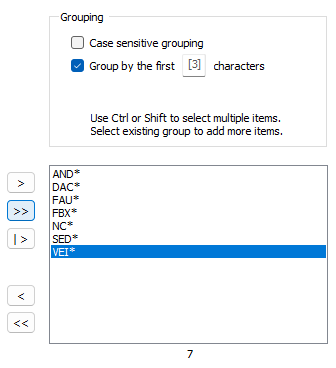

You can also select an option to Group by the first <n> characters (by applying a wildcard thereafter):



Nexus Capabilities

To help with the smooth introduction of new Nexus integration features, Micromine Origin & Beyond is now able to keep track of which Nexus capabilties are supported. When attaching a Nexus project, the application will send its known capabilities to the Nexus server. The server responds with the list of capabilities that Origin & Beyond is allowed to use for the project. This information is stored as part of the project's attributes.

When an Origin & Beyond project is opened, the application will check for any Nexus capabilities that are not stored as part of the project's attributes. If Nexus capabilities exist which are unknown to the project, this may have an affect on existing Nexus capabilities and a warning is displayed.
