Circle/Ellipse

2-Point Radius Circle

On the Design tab, in the Create group: Select Circle/Ellipse | 2-Point Circle to digitise the centre point and the radius of a circle.

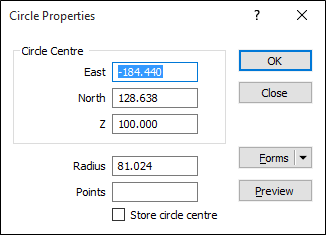

Circle Centre

Enter coordinates to adjust the centre of the circle.

Radius

Enter a value to adjust the radius of the circle.

Points

This parameter defines the number of segments of the polygon that represents a 360° circle. For example, if you specify 60 points, then an arc point will be inserted every 6°.

Leave the Points parameter undefined if you want to generate a circle rather than a polygon.

Store circle centre

Select this option to store the coordinates that define the centre of the circle.

Preview

Click the Preview button to see a preview of the circle. If you are happy with the result, click OK. Otherwise adjust the parameters you have entered and preview again.
