Link

Micromine Origin & Beyond integration with Micromine Nexus requires a connection to a server. The URL you specify will either be an external address (cloud) or a local address (on premises).

By default, the server URL is the Australian instance (nexus.micromine.com) Information on the Server URL for your location can be found on the Micromine website at https://www.micromine.com/nexus-login/. Right click on the relevant button to Copy the link. If the URL has changed, you will need to unlink your project first.

Request an account from your Nexus administrator, who will provide you with the credentials you need to sign-in.

Please note: If you have not yet created a Nexus project, you will need to sign-in to Nexus (from your Internet browser) and create a project prior to using the Link option.

Link Project

To link the current project to a Nexus project:

1. Click the Project tab to open the backstage menu.

2. On the backstage menu, select Nexus.

Alternatively:

3. On the Home tab, in the Nexus group: Select Link Project. You will be redirected to the Nexus backstage page. (This option is unavailable when a link is already active - you will need to unlink first. You must also be signed in to Nexus to enable this option.)

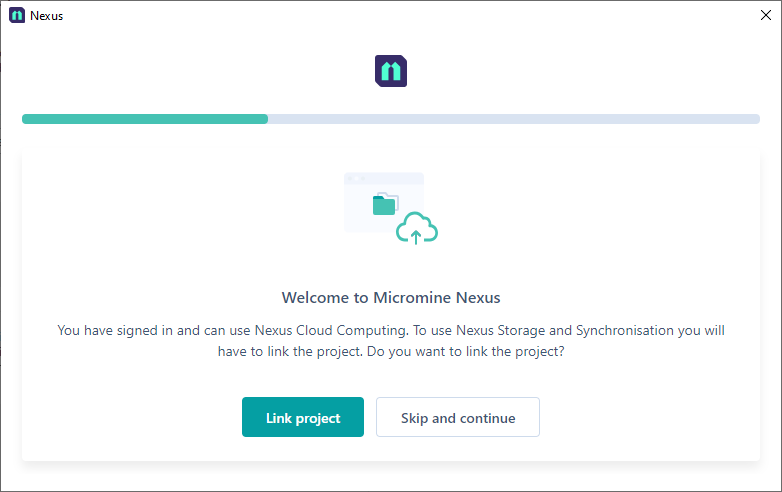

4. You will be prompted to select a Nexus project to link to:



   As displayed, you need to link to a Project in order to use Nexus Storage and Synchronisation features. If you don't want to use those features, you can Skip and Continue.

   To link a project,

   4. Click Link project.

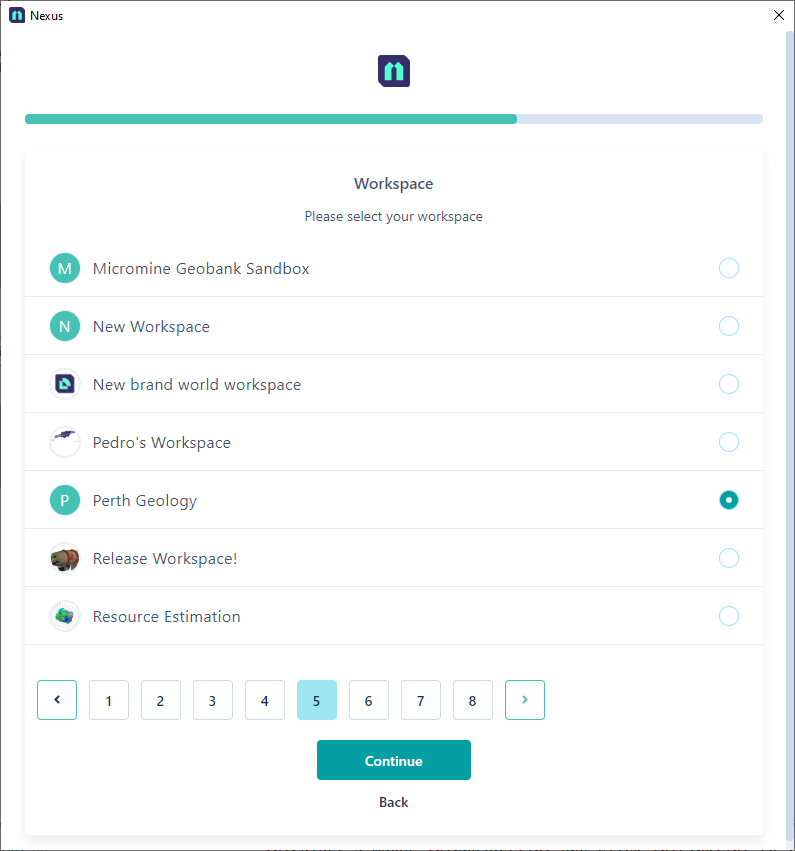

      If you only have one workspace, you will be prompted to select a project in that workspace. If your subscription plan supports multiple workspaces, you will be prompted to select a Nexus workspace and then click Continue:



      The Projects in the selected workspace are displayed.

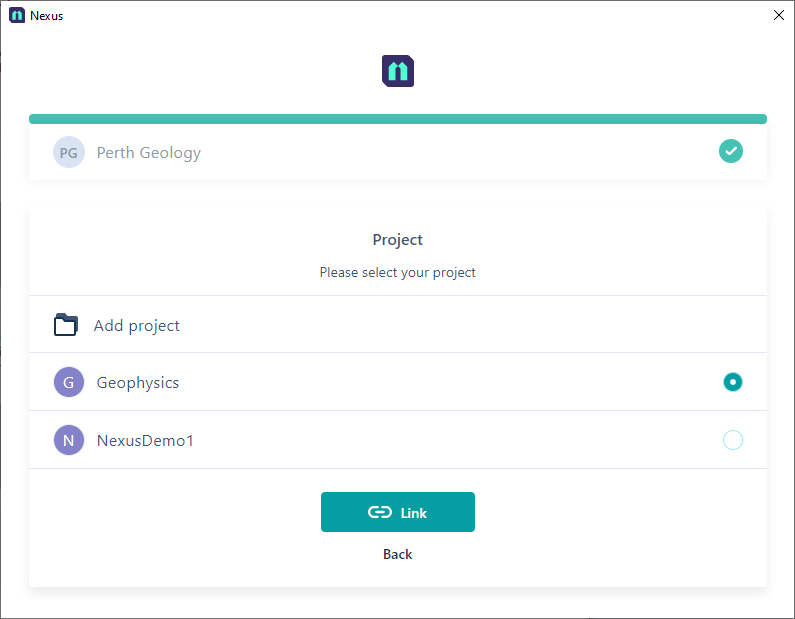

   5. Select a Nexus Project and click Link to link your Micromine project to the Nexus project:

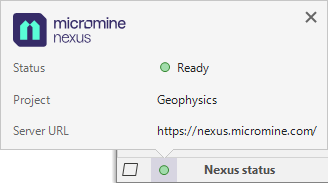

      After successfully linking to a Nexus project, the connection parameters you have specified and a "Ready" status icon are shown on the application status bar:

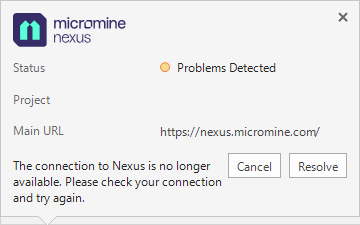

      If there are any issues with your connection, such as scheduled downtime of the Nexus server, the status icon will change colour and an alternate message will be displayed.



6. Use the options on the Home tab, in the Nexus group, to manage your connection to the linked Nexus project.

Unlink Project
