Project Substitutions

On the Home tab, in the Projects group: Select Project | Substitutions to define substitution variables, and their values, for project-wide use.

Alternatively: Click the Project tab to open the backstage menu and then select Options | Variables.

Variables commonly used by the application are predefined as substitution parameters. You can also create your own substitutions for use in the current project.

@ Variable

Enter a name for the variable. Note that while you need to prefix substitutions with the @ sign when you reference them in a macro, in an expression or in a form, you do not need to include the @ sign when you add project substitutions here.

Substitution

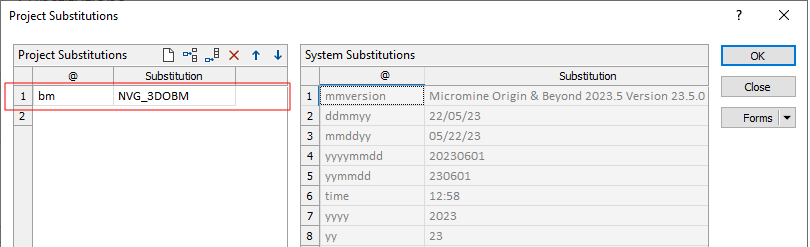

Specify the value that will be substituted wherever the substitution variable name is referenced in the current project. This might be a numerical value or the name of a field or file. In this example, the name of a block model file in the current project is specified:

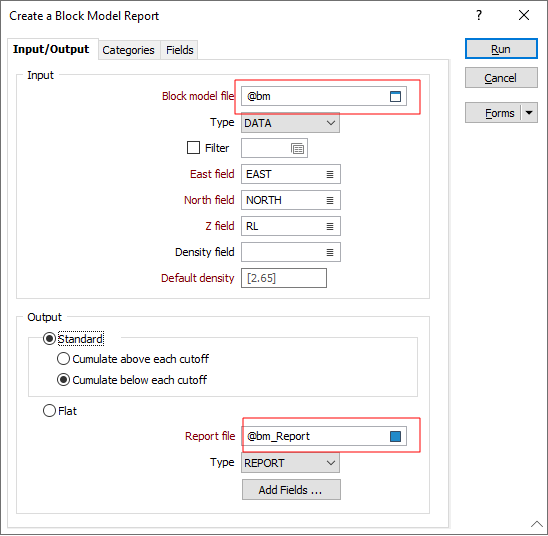

Project substitutions can be referenced in multiple places throughout the application, for example, in a macro, in an expression, or directly in a form as shown here:

System Substitutions

System substitutions (which exist for the current session) use system information and the metadata associated with a current user's session. Since they are "global" you can use them anywhere in the application where substitutions can be made, for example, in a Text Frame in a 2D or a 3D plot.

These substitutions are provided for easy reference in the right-hand pane:

Parameter	Description
@ddmmyy	Current date, e.g. 26/5/23
@mmddyy	Current date, e.g. 5/26/23
@yyyymmdd	1Current date, e.g. 20230601
@yymmdd	1Current date, e.g. 230601
@time	Current time, e.g. 12:34
@yyyy	Current year, e.g. 2010
@mm or @month	Current month, e.g. 11 or Nov
@dd	Current day, e.g. 23
@project	Current project, e.g. DEMO
@projdir	Current project folder, e.g. C:\PROJECTS\TEST
@projtitle	Current project title, e.g. DEMO PROJECT
@username	Current user's username
@networkdomain	Current user's network domain
@licenceID	Current user's application licence ID
@licenseID	Current user's application license ID
@mmversion	Current user's application version number
@computername	Current user's computer name
@windowsversion	Current user's Windows operating system version

¹An all-numeric format allows these dates to be stored and sorted in a numeric field column.

Like predefined System substitution parameters, Contextual substitution parameters exist for the current session. However, they are not "global" since they can only be used in a particular context, for example, in the context of a Plot File, a Ring Design or Blast Design Plot, or the Drillhole Log, etc.

For a complete list of system and local predefined substitutions see: Predefined Substitution Parameters

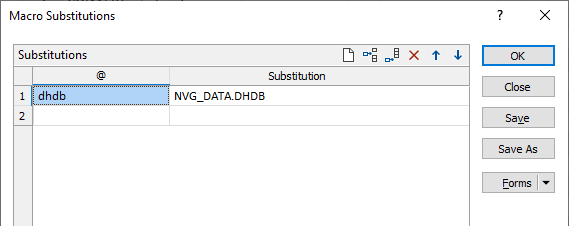

Substitutions can also be defined under Script | Macro Commands | Utilities | Substitutions Table. However, predefined substitutions do not need to be included in the table.
