Auto CAD Colour Index (ACI)

Default ACI (AutoCAD Colour Index) numeric and text colour sets are included in the template for new projects.

The tables below contains hexadecimal and decimal RGB codes for the 256 colors in the AutoCAD Colour Index (numbers 0-255). The coded colours are shown in the ACI number cell for each row.

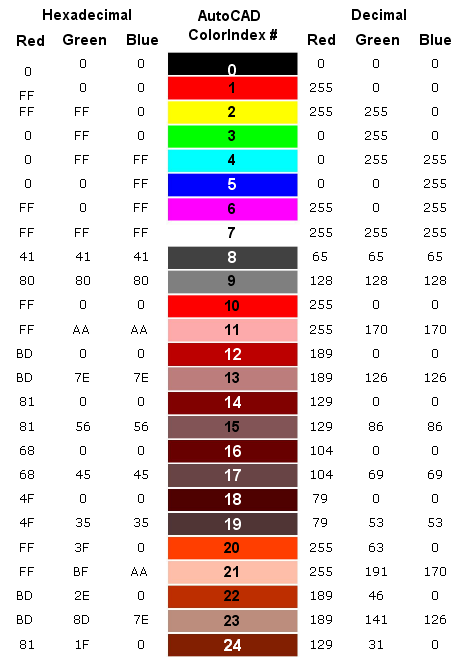

Closed0-24

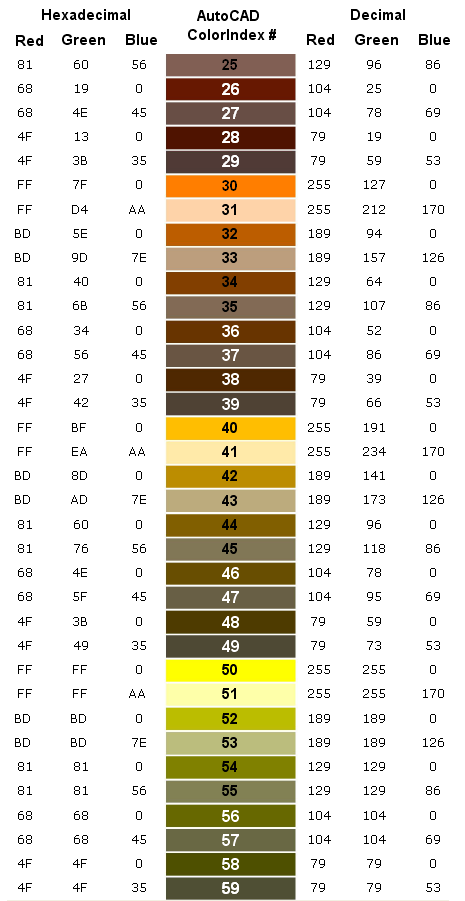

Closed25-59

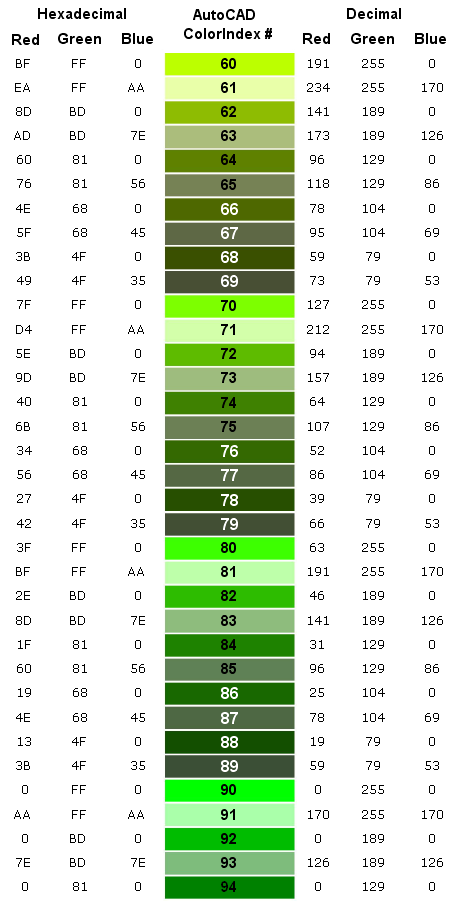

Closed60-94

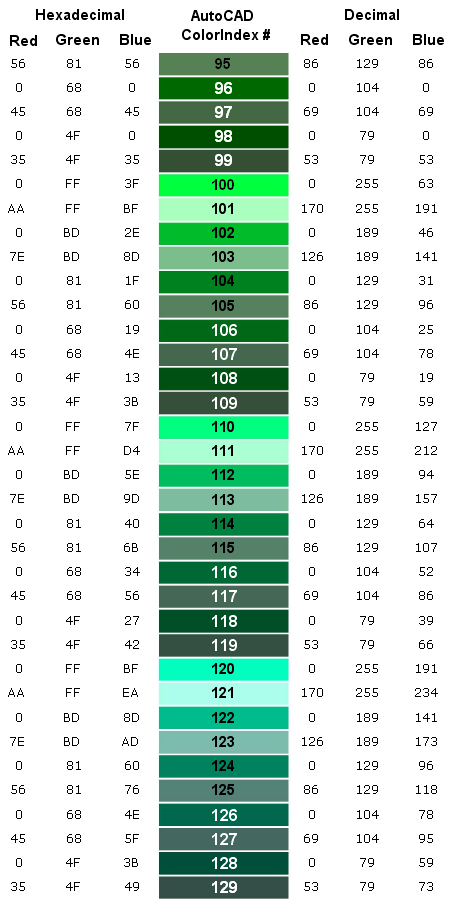

Closed95-129

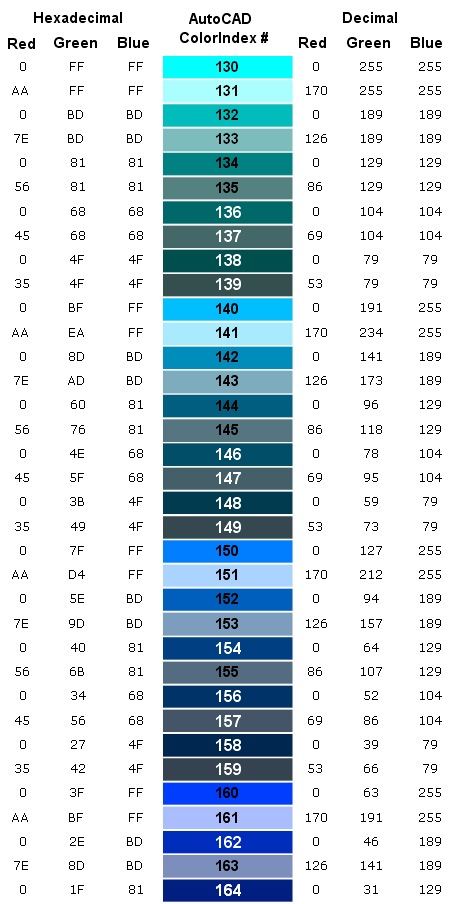

Closed130-164

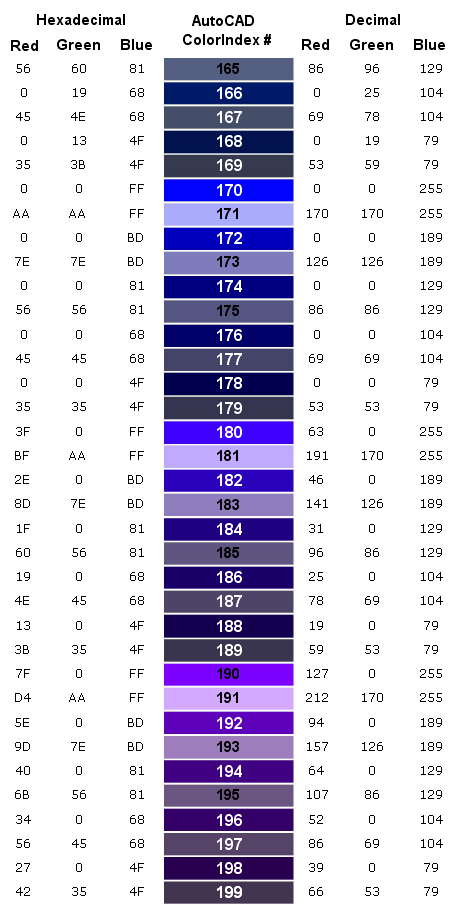

Closed165-199

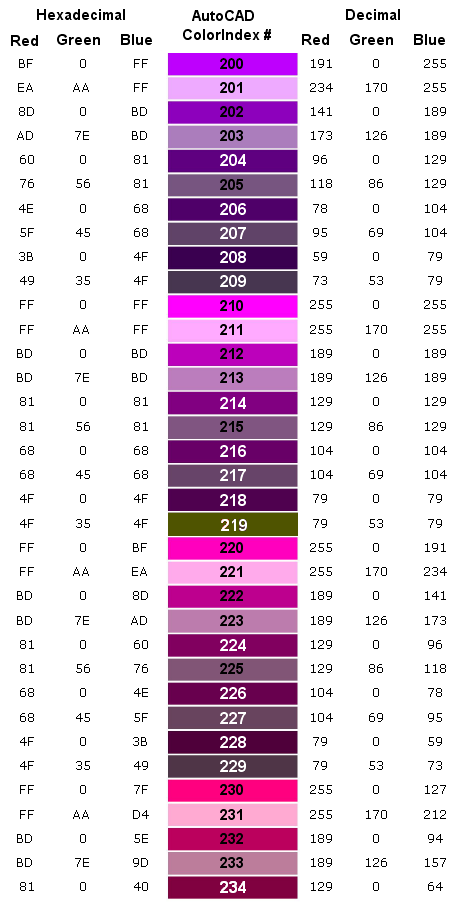

Closed200-234

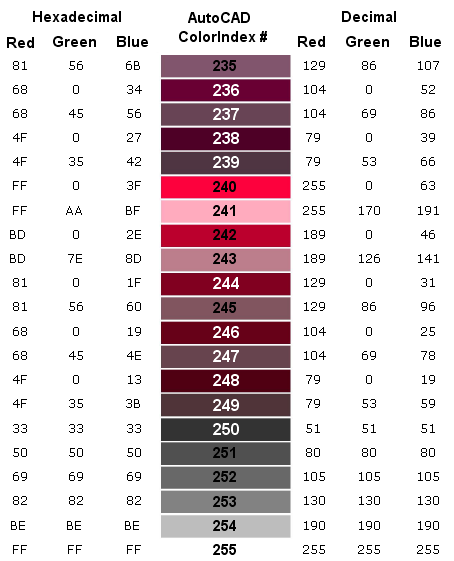

Closed235-255
