Plot Editor

This topic provides a summary of new features and enhancements related to the Plot Editor.

Plot to PDF

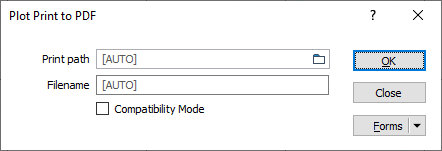

You can now directly export a 2D plot as a vectorised PDF by selecting a Compatibility Mode check box in the Plot Print to PDF form. When this check box is selected, the Graphics Device Interface (GDI) is used to render and vectorise the plot. A smaller PDF is generally generated as a result. Vectorised PDFs are editable in programs such as Adobe Illustrator. Some text wrapping may be disabled, however.
