Scheduling

Task Dependencies Layer

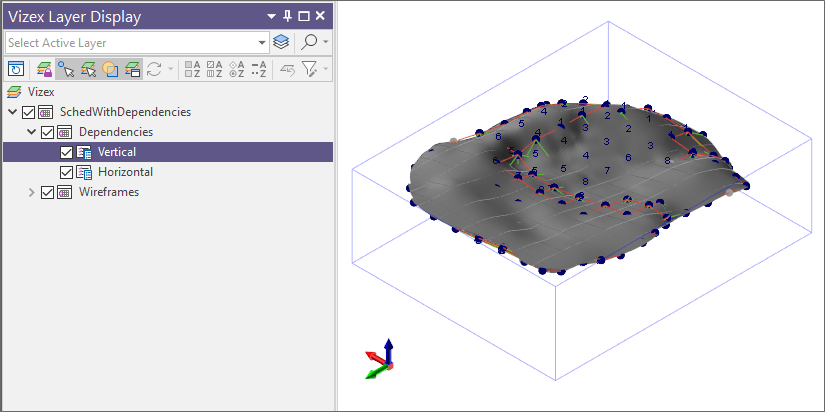

A new Task Dependencies layer is now available within the Vizex view when a schedule is opened. This makes it possible to visually check generated dependencies for compliance with the requirements of a particular mining method.

Points which represent the centroids of source tasks are connected by strings to their corresponding destination tasks. Filtering Options include Dependency Type. Display Options include Dependency Type, Connection Type, Lag Size and Lag Type. When enabled, the content of the layer is updated automatically as changes are made in the Gantt Chart, when new tasks are imported and when auxiliary tasks are created or recreated.



Task Dependencies Filter

A new Task Dependencies filter is now available in the Task Filter Options form. Select the Dependencies check box to filter tasks by selecting the (Immediate, Previous, Next, Between) dependencies of those tasks, depending on the selected dependency mode:



Only those tasks with a dependency that matches the specified mode will be shown in the Gantt Tasks List and the Dependencies layer:

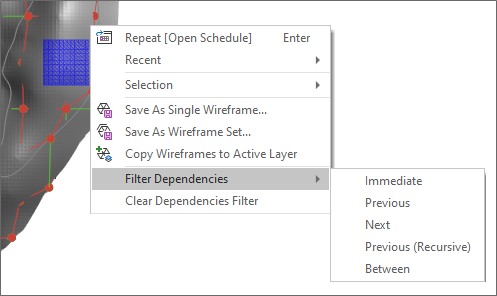

When a filter is applied, a Clear Dependencies Filter option is available via the right-click menu. A Filter Dependencies menu is available when one or more tasks are selected:
