Mine Design

This topic provides a summary of new features and enhancements related to Mine Design.

Dynamic Input

Angle Units

Angle units in Degrees-Minutes-Seconds, Radians and Gradians are now supported when digitising strings with Polar coordinates in Dynamic Input mode. The default units are Decimal Degrees.

Decimal Degrees e.g. 15.95
Radians: using the suffix "r", e.g. 3.15r
Gradians: using the suffix "g", e.g. 262.7g

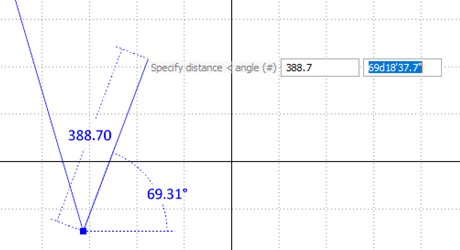

Degrees/Minutes/Seconds: where "d" is for degrees, ' (apostrophe) is for minutes and " (quotes) is for seconds, e.g. 69d18'37.7":

When an angle is entered of the specified format, the tool will switch to working in that mode until a new value is typed.
