Report

On the Wireframe tab, in the Report group, click Properties to export properties and attributes for the wireframes of a selected type, for a named wireframe, or for a named wireframe set, and write them to a Report file.



Report Options

Select one or more Report options:

Extents, Surface Area, Plan Silhouette Area, Average Vertical Thickness, Volume, Validation, Centroid Coordinates, Standard and User Attributes.

Report file

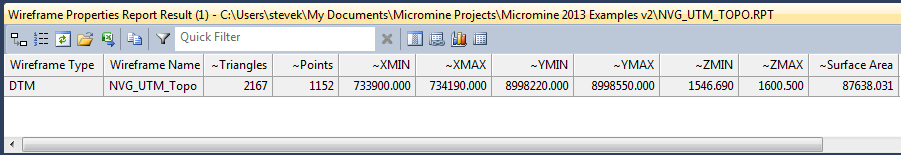

Double-click (or click on the Select icon) to select the name of the Report file that will be generated. When you click OK, the report is opened in the Report Viewer.

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

OK

Click OK to generate a report based on the wireframes and the options you have selected.
