Coordinate Grid Settings
This form has three tabs, each with settings that control:
- which grids are active and the space in which they operate
- the appearance (labelling, line styles, transparency etc.) of the grid
- the display of an orientation axis tool
The Configuration tab of the Coordinate Grid Settings form defines the space that the coordinate grids work in. Here you can fine-tune the spacing and the extents of the grids you have made active.
Grid type
Choose the type of coordinate grid to display.
- FULL draws lines from one side of the paper to the other.
- CROSSES draws ticks around the plot border and crosses wherever grid lines intersect.
- TICKS draws ticks around the plot border.

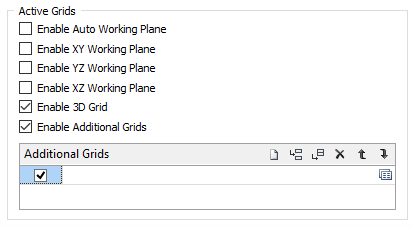

Active Grids
Use the options provided here to enable Auto Working Plane, or explicitly set the working plane, and select which grids are active.
Enable Auto Working Plane
The Auto Working plane is calculated on-the-fly like this:
If you are currently in an orthogonal view, then this will be taken as the current plane setting and the Auto Working Plane will remain in that orientation until you switch to a different orthogonal view.
For example:
If you are currently in Plan view, the Auto Working plane will be equivalent to the XY Working plane and will stay in that plane until a different orthogonal view is selected. So if you switch to Looking North, the Auto Working Plane will be equivalent to the YZ Working Plane.
See ‘Turn off Auto Working Plane in 3D views’ below.
Enable 3D Grid
If you are working in 3D mode, select this option to enable a 3D grid. See ‘Turn off 3D Grid in orthogonal views’ below.
Enable Additional Grids
Select the Enable Additional Grids option to enabled or disable additional grids as a group. The state of this check box can also be toggled on or off by clicking the Toggle Additional Grids button on the Coordinate Grid toolbar.
You can also assign a shortcut key to the Enable Additiona Grids command from Tools | Options | Customise (Keyboard Shortcuts).
To individually show or hide additional grids use the check boxes in the Additional Grids list, or use the drop-down tool menu:
For more information, see: Other Grids

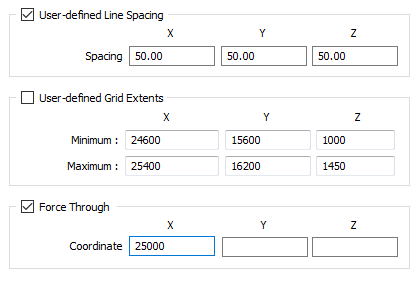

User-defined Line Spacing and Grid Extents
If these check box options are selected, the active grids will take their spacing and extent information from the settings you define.
If the line spacing or the extents you enter are invalid, then the line spacing or extents of the active grids will be calculated automatically.
Entering user-defined values may be necessary when the line spacing and grid extents calculated automatically are not suitable for your data. Auto spacing might be too coarse, for example, and you may prefer a finer spacing.
If the spacing or extents you enter are invalid, then the spacing or extents of the grid will be calculated automatically.
If setting are incomplete the function will always attempt to use any valid settings you have entered.
Force Through
Sometimes it is necessary to force the grid lines through a particular coordinate.
For example, a grid with a 20m spacing will, by default, be running through 100m, 120m and 140m. You may require the grid to pass through 90m, 110m and 130m. In this case, enter one of these values and the grid lines will be adjusted automatically.
If force through values are not defined, the default is 0, or the user-defined minimum values (if user-defined extents have been specified).

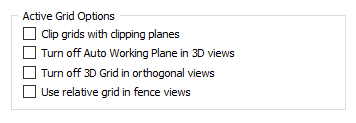

Active Grid Options
Clip grids with clipping planes
If you are viewing your data in section and have a grid enabled, but Auto Working Plane is not enabled, select this option to clip the grid to the section extents.
You may want to enable a grid in the XY Working Plane, for example, to see where the clipped section sits in X-Y space.
Turn off Auto Working Plane in 3D views
By default, an active grid is visible whether you are in an orthogonal or a 3D view. If you have Auto Working Plane enabled and you prefer to see a grid in an Orthogonal view only, select this option to automatically turn off the grid while you are in 3D mode.
Turn off 3D Grid in orthogonal views
If a 3D grid is enabled, but you prefer to see the 3D grid in a 3D view only, select this option to automatically turn off the 3D grid while you are in orthogonal mode.
Forms
Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.
Save As
Click on the Save As button to save the settings you have made as a form set.
Apply
Click the Apply button to apply the settings you have made without closing the Grid Settings form. You can then check the effect your settings and adjust them if needed.
