Line sets

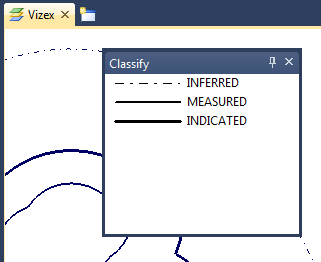

Line sets give you the ability to apply different line styles and line widths to the polylines in a single dataset. You can apply them in the same way that you can apply colours, hatches and symbols to your data (by linking the values in a nominated field to the values in a Line set).

Line style options are:

  • SOLID
  • DASH
  • DOT
  • DASH DOT
  • DASH 2 DOTS

Line width options are:

  • THIN
  • MEDIUM
  • THICK
