Section to String

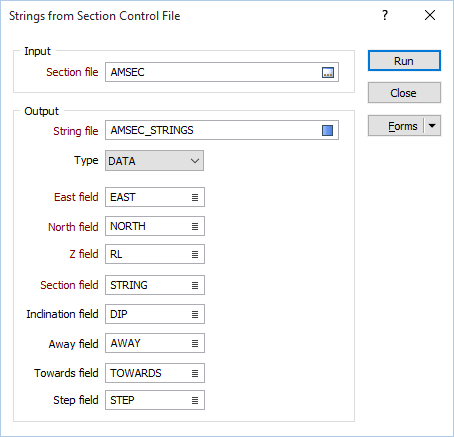

On the Vizex | Sections tab, in the Section Control File group, click Convert to String File to generate strings from the section definition fields in a section control file.

Input

Section file

Double-click to select the section control file that will be used as input to the process. A section control file is simply a Micromine (.DAT) data file that contains string definition and section (Inclination, Away, Towards and Step) definition fields.

Output

String File

In the Output group, select a file type and double-click (F3) to select the Output file that the strings will be written to.

East, North and Z fields

Specify the names of the fields in which Easting, Northing, and Z coordinates are stored.

Section field

Specify the name of the field containing values that define each section.

Inclination field

Optionally, specify the name of the field containing Inclination values.

The Inclination is the horizontal angle at which you are looking at the section. An Inclination of 0, for example, is horizontal and you are looking at a vertical section. -70 is up 70°. 30 is down at 30° measured from the horizontal (the same convention is used when you set Display Limits).

This is different to drillhole inclination. Drillhole inclination is measured relative to the horizontal, ranging from +90° (vertically up) to -90° (vertically down).

Away field

Optionally, specify the name of the field containing Window Away values. In Section view, window away is a measurement taken from the section line away from the viewer.

Towards field

Optionally, specify the name of the field containing Window Towards values. In Section view, window towards is a measurement taken from the section line towards the viewer.

Step field

Optionally, specify the name of the field containing the values which define the distance to be moved from the Next Section/Previous Section.
