Output

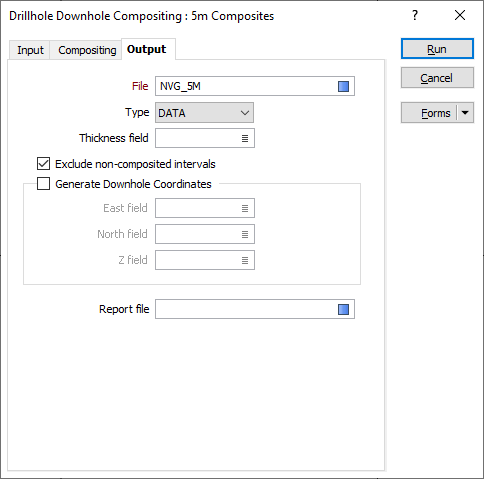

On the Output tab of the form, specify the type and name of the Output file and set options to:

• Exclude non-composited intervals
• Generate Downhole Coordinates

Exclude non-composited intervals

If this option is selected, only those records that were composited will be written to the output file. Otherwise, all records that were processed will be written to the file.

Generate Downhole Coordinates

Select this option to define trace coordinates and write those coordinates to the Input file.

3D coordinates are needed whenever an Interval file is used in a process where the locations of the intervals must be known. Some examples are resource estimation assignments using outlines. 3D coordinates are also required in various Compositing functions.

Report file

Enter the name of the Report file. If any errors occur during the process, they will be written to this file. See: Errors in the Compositing process

Insert missing intervals

If you select Insert missing intervals, missing intervals will be added to the output file. They will commence from the top of the hole.

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

Run

Finally, click Run to begin the process.
