Firing Sequence

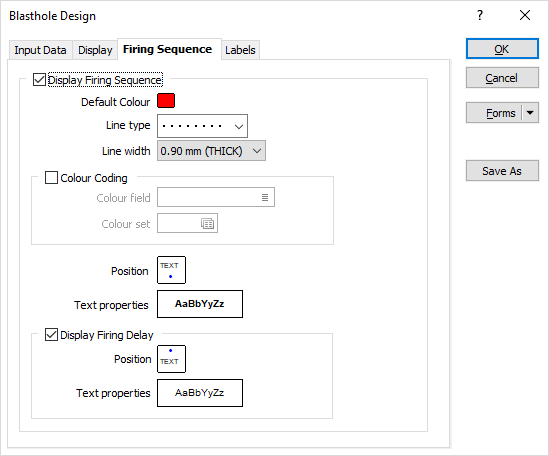

When Firing Sequence parameters have been set, use the Firing Sequence tab of the Blasthole Design form to colour-code and label the lines that show the firing sequence.
Display Firing Sequence
Select this check box to display the firing sequence of the holes using a nominated colour and line type.
Default Colour
Double click (F3) to select the colour which will be used to draw the trace.
Line type
Select a line type. A preview of each line type is shown in the drop-down list. A variety of solid, dotted, and dashed line styles are available for selection.
Colour Coding
Select this option if you want to colour code the firing sequence based on the values in a colour field.
Select the field in the input file that contains values which will determine the colour to be used to depict the firing sequence. The colour set, that is associated with this field, maps colours to text strings or numeric ranges. For each record in the file, the display colour is determined by the value in this field.
Double click (F3) to select the colour set that will be used to control the display colour. The colour set maps colours to text strings or numeric ranges. This determines the colour for each value in the colour field. Right click (F4) to create or edit a colour set.
Position
Double-click on the Position icon to specify how the labels will be positioned in relation to each collar. Annotation can be located at one of twelve positions around the point. Double-click (F3) to open the Text Position dialog.
Text Properties
Double-click on the Text Properties Preview box to select a font and set text properties for the labels.
Display Firing Delay
Select this check box to display firing delay values for each hole.
Position
Double-click on the Position icon to specify how the labels will be positioned in relation to each collar. Annotation can be located at one of twelve positions around the point. Double-click (F3) to open the Text Position dialog.
Text Properties
Double-click on the Text Properties Preview box to select a font and set text properties for the labels.
