Column Editor Controls

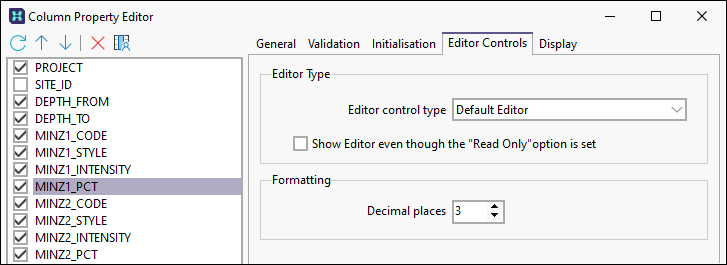

The options available for the editor control file will vary depending on the type of column you currently have selected. For numeric fields, there is only one option:

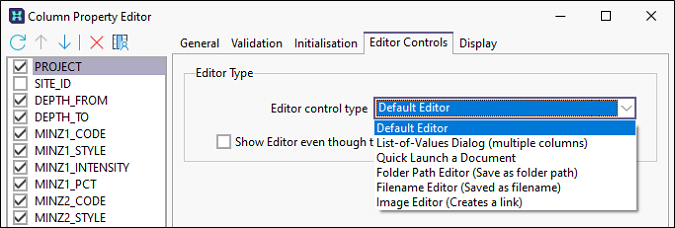

For text fields, 'Default editor component' is the default editor control, but other options are available:

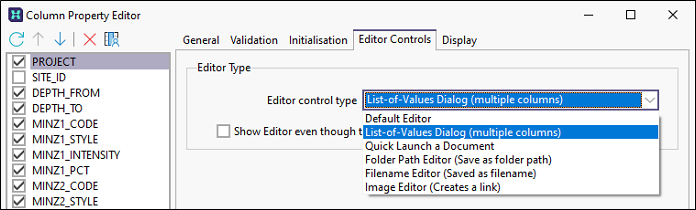

If List of Values is selected on the Validation page, then a List of Values dialog option is available:

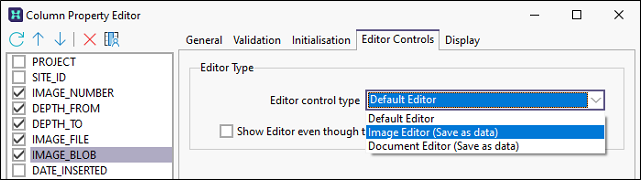

If a BLOB image column is selected, the Image Editor (Save as data) option is available:

This option will save edited images as a data file, rather than as a link like the Image Editor (Creates a link) option.

For Date and Time columns, you can select the Default Editor or Date and Time, Date or Time editors:

Note: For smalldatetime columns with a Time Only editor control type, when users attempt to edit a cell, the full Date and Time will be shown in edit mode. On exit, the correct Time only value will be displayed. This is expected behaviour and is determined by the limits of third-party components used by Micromine Geobank.

Other editor control options allow you to browse to a folder rather than a file, or browse to a particular type of document or image.
