Export Drill Plan
The Data Transfer component of the Configuration Manager contains tools used to import and export data for Micromine Geobank.
The Export Drill Plan option exports all planned holes, including surveys, DH surveys, and planned samples for a selected Project and Location as a .csv file. The export also populates GM tables with the planned holes and samples.
To export the drill plan,
-
Open the Configuration Manager.
-

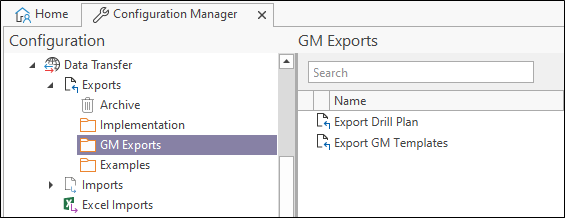

Select the Data Transfer| Exports | GM Exports option.
-
Double click the Export Drill Plan option.

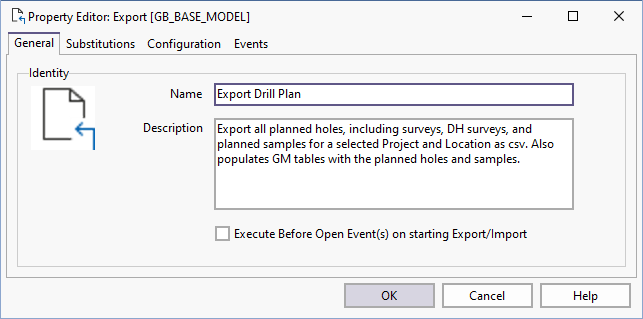

The Property Editor: Export form opens.
The General tab contains the Name and Description of the export tool.
If you are configuring a task in Unattended mode, be aware that you should use the full UNC path for any mapped network drive: for example, \\server001\data\reports\ instead of N:\Reports. For detailed information, see Automation.
