Polygons

The regions/polygons we are calculating conformance in need to be explicitly defined.

In the Polygons step, you can draw the polygonal extents for each reporting region.

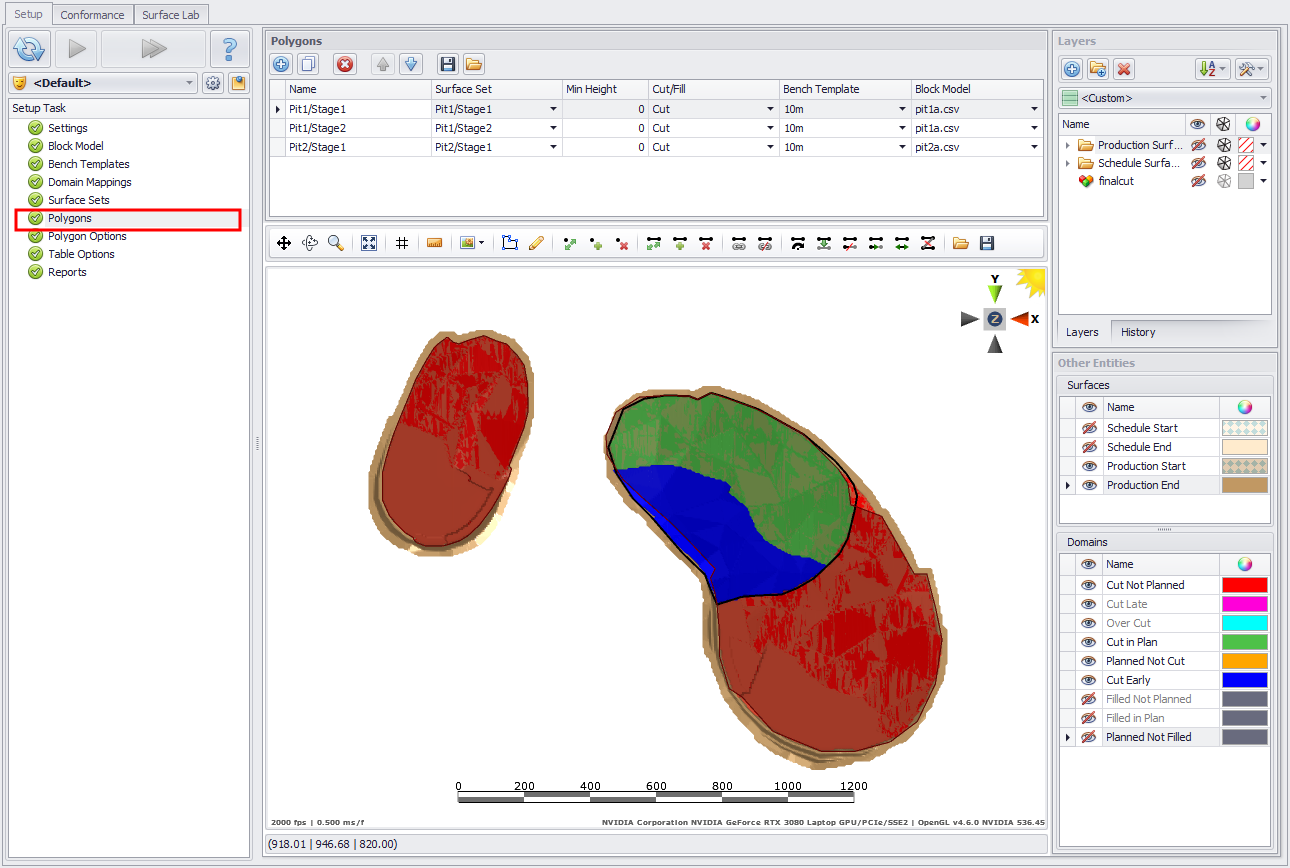

Setup Polygons

Creating Polygon

  1. Click the blue plus button located in the Polygons toolbar.

  2. Draw a closed polygon around an area of interest using the CAD tools found in the toolbar above the viewport (description see Toolbar).

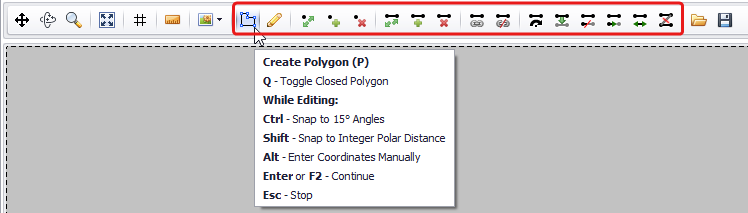

    CAD tools available to draw polygons

  1. Set the properties of the polygon, as described below:

    2. Property

    Description
    Name The name of the region. Polygons can be organized in a tree using delimiters for levels, such as "Alastri/Pit1".
    Surface Set The solids which will be used to calculate the conformance.
    Min Height Optional - The Minimum height the block needs to be included in calculations. Setting to zero will use the Minimum Height from Settings.
    Cut/Fill Does the defined region encompass a pit (Cut) or a dump (Fill).
    Bench Template Optional - Bench Template to use within the defined region.
    Block Model Optional - Block model to use within the defined region.
