Blast Custom Labels

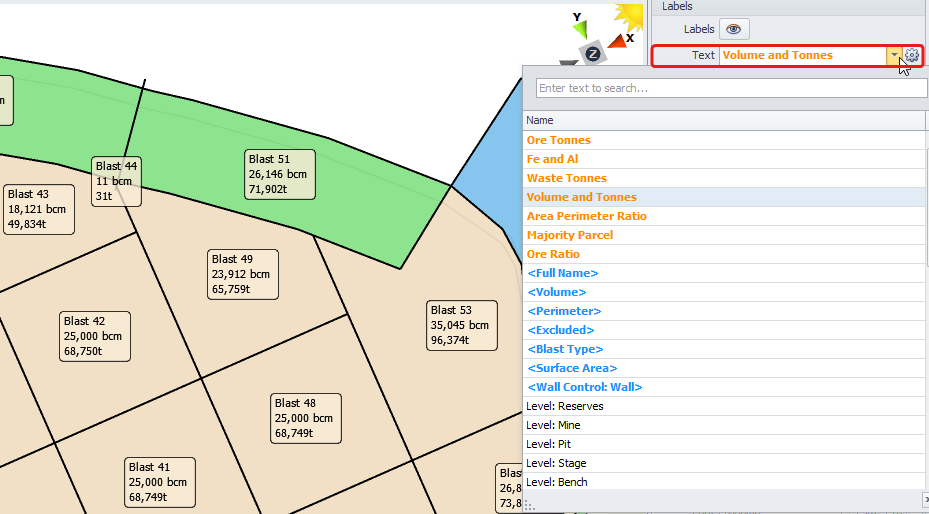

In the Designer tab in Display panel locate Labels section and press Text drop-down: there is a preloaded list of automatic labels for the level hierarchy and reserves fields.

We can add to this list by configuring custom labels displaying various data and properties.

Adding Custom Labels

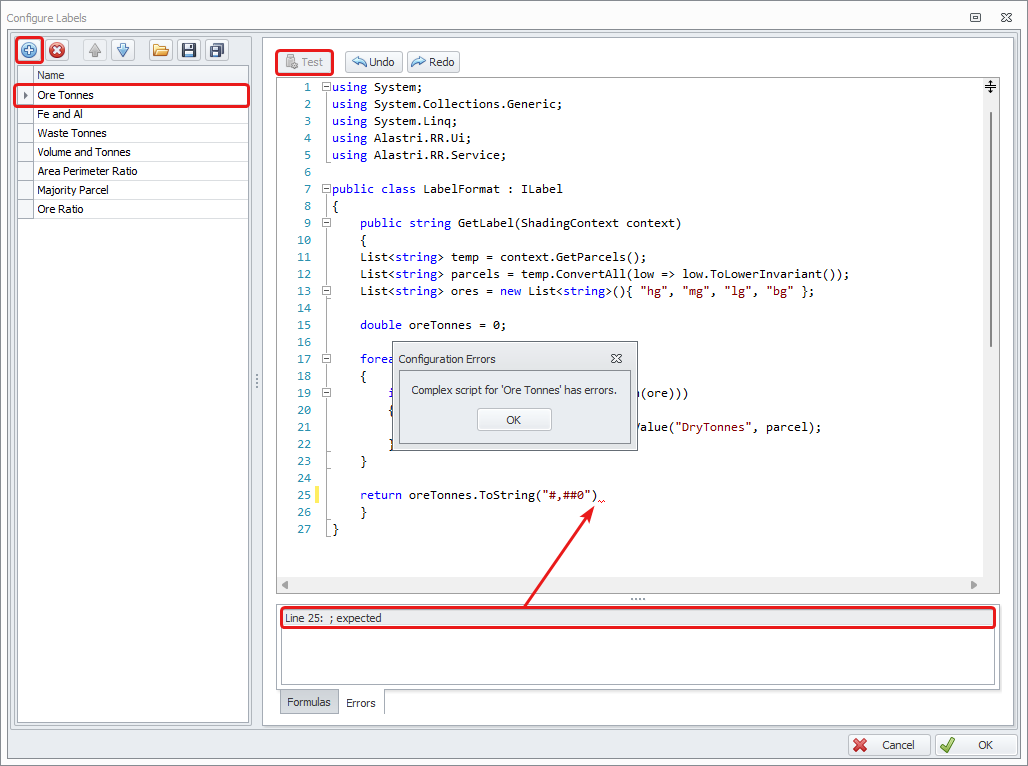

Select the gear icon next to the Text dropdown. This opens the configuration dialog.
Click the blue plus icon to add a new label.
Rename the label to "Ore Tonnes" for example.
Paste the sample formula into the code editor.
Double click in the Available Formulas for code hints.
Click theTest button to make sure your code is correct. Any errors found will be shown in the Errors panel and won’t let you to proceed.
Fix any errors detected, run test again and press OK to accept.

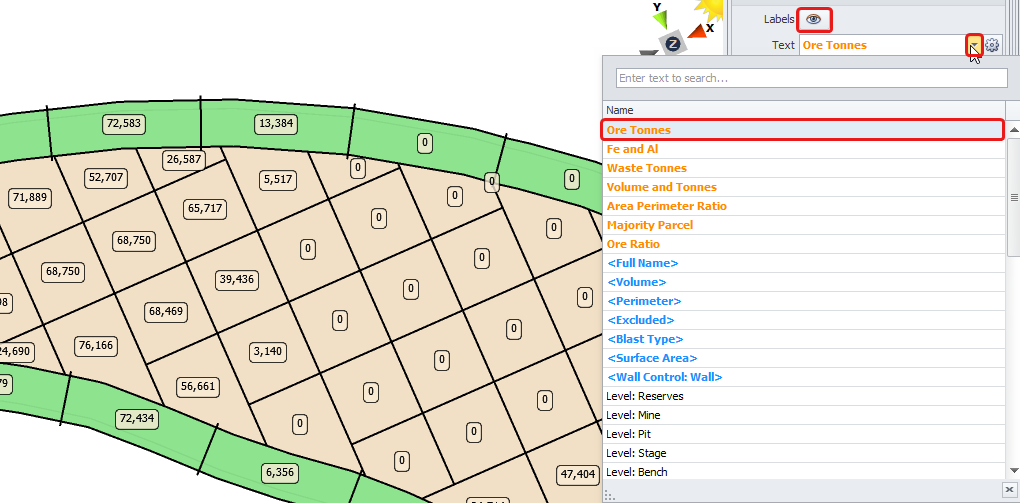

In the Labels panel on the right, toggle the eye icon to show labels. From the Text drop-down select the label you have created - Ore Tonnes (Note that custom shadings are shown in bold orange, while standard shadings are shown in normal black).

Select bench from the tree on the left to display it in the viewport and review the result.

Custom Labels Examples

See below a list of the most common custom labels you can copy and paste into your Code Editor, making some custom changes as required.

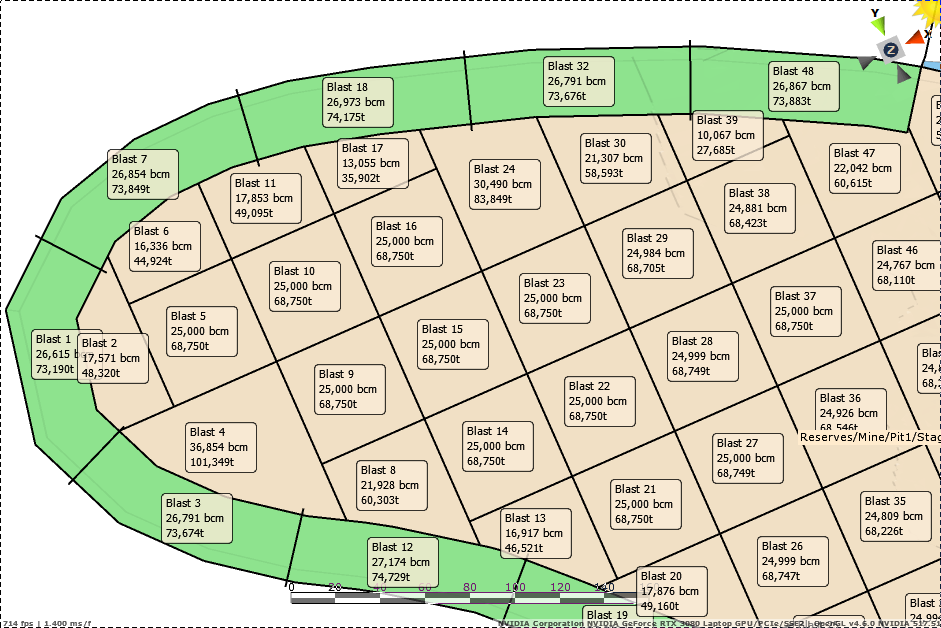

Multi-Line Label

Copy

1
2
3
4
5
6
7
8
9
10
11
12
13
using System;
using Alastri.RR.Ui;
using Alastri.RR.Service;

public class LabelFormat : ILabel
{
    public string GetLabel(ShadingContext context)
    {
        return "Blast " + context.GetLevelName("Blast") + "\n"
        + context.GetReserveValue("Volume").ToString("#,##0") + " bcm \n"
        + context.GetReserveValue("DryTonnes").ToString("#,##0") + "t";
    }
}

Area / Perimeter Ratio

Copy

1
2
3
4
5
6
7
8
9
10
11
using System;
using Alastri.RR.Ui;
using Alastri.RR.Service;

public class LabelFormat : ILabel
{
    public string GetLabel(ShadingContext context)
    {
        return (context.SurfaceArea / context.Perimeter).ToString("#,##0.00");
    }
}

Ore Tonnes Label

Copy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
using System;
using System.Collections.Generic;
using System.Linq;
using Alastri.RR.Ui;
using Alastri.RR.Service;

public class LabelFormat : ILabel
{
    public string GetLabel(ShadingContext context)
    {
    List<string> temp = context.GetParcels();
    List<string> parcels = temp.ConvertAll(low => low.ToLowerInvariant());
    List<string> ores = new List<string>(){ "hg", "mg", "lg" };

    double oreTonnes = 0;

    foreach(var parcel in parcels)
    {
        if(ores.Any(ore => parcel.StartsWith(ore)))
        {
            oreTonnes += context.GetReserveValue("DryTonnes", parcel);
        }
    }

    return oreTonnes.ToString("#,##0");
    }
}

Waste Tonnes Label

Copy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
using System;
using System.Collections.Generic;
using System.Linq;
using Alastri.RR.Ui;
using Alastri.RR.Service;

public class LabelFormat : ILabel
{
    public string GetLabel(ShadingContext context)
    {
    List<string> temp = context.GetParcels();
    List<string> parcels = temp.ConvertAll(low => low.ToLowerInvariant());
    List<string> waste = new List<string>(){ "w", "minw" };

    double wasteTonnes = 0;

    foreach(var parcel in parcels)
    {
        if(waste.Any(waste => parcel.StartsWith(waste)))
        {
            wasteTonnes += context.GetReserveValue("DryTonnes", parcel);
        }
    }

    return wasteTonnes.ToString("#,##0");
    }
}

Majority Parcel

Copy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
using System;
using Alastri.RR.Ui;
using Alastri.RR.Service;

public class LabelFormat : ILabel
{
    public string GetLabel(ShadingContext context)
    {
        var parcels = context.GetParcels();

    string majorityParcel = "";
        double majorityTonnes = -1e7;
        foreach (var parcel in parcels)
        {
            double t = context.GetReserveValue("DryTonnes", parcel);
            if (t > majorityTonnes)
            {
                majorityTonnes = t;
                majorityParcel = parcel;
            }
        }
    return majorityParcel;
    }
}

Ore Ratio

Copy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
using System;
using System.Collections.Generic;
using System.Linq;
using Alastri.RR.Ui;
using Alastri.RR.Service;

public class LabelFormat : ILabel
{
    public string GetLabel(ShadingContext context)
    {
        List<string> wasteList = new List<string>(){ "w", "lg1", "lg2", "lg3" };

        double oreTonnes = 0;

        foreach(var parcel in context.GetParcels())
        {
            if(!wasteList.Contains(parcel.ToLower()))
            {
                oreTonnes += context.GetReserveValue("DryTonnes", parcel);
            }
        }

    double allTonnes = context.GetReserveValue("DryTonnes");

        return allTonnes == 0 ? "0" : (oreTonnes / allTonnes).ToString("0.0%");
    }
}

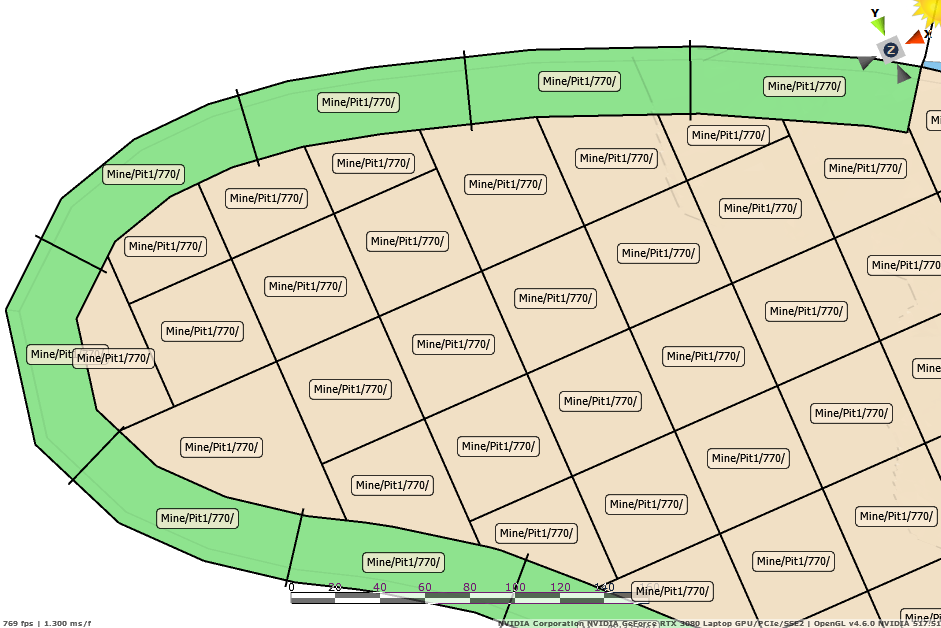

Grade Control Naming Convention

Copy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
using System;
using Alastri.RR.Ui;
using Alastri.RR.Service;

public class LabelFormat : ILabel
{
    public string GetLabel(ShadingContext context)
    {
        string mine = context.GetLevelName("Mine");
        string pit = context.GetLevelName("Pit");
        string bench = context.GetLevelName("Bench");
        string blast = context.GetLevelName("Solid");
        string gradeBlock = context.GetSolidPropertyString("GradeBlock");

        if(context.ReservesDataSource.ToString() == "BlockModel")
        {
             return mine + "/" + pit + "/" + bench + "/" + blast;
        }
        else
        {
         blast = blast.Split('_')[0];
             return mine + "/" + pit + "/" + bench + "/" + blast + "/" + gradeBlock;
        }
    }
}

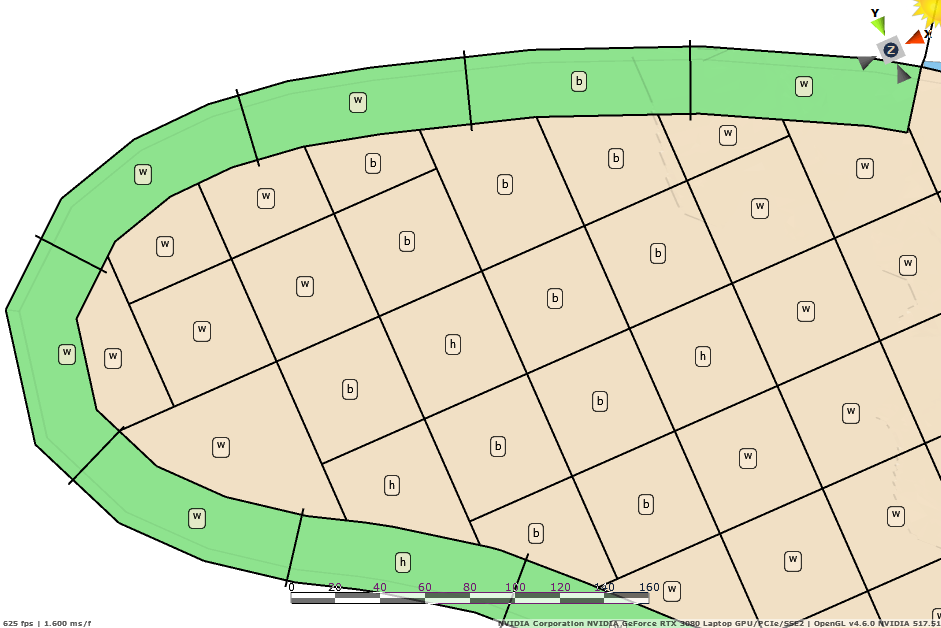

Calculate Blast Type

Copy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
using System;
using System.Collections.Generic;
using System.Linq;
using Alastri.RR.Ui;
using Alastri.RR.Service;

public class LabelFormat : ILabel
{
    Dictionary<string,double> parcelLookup = new Dictionary<string, double>();
    Dictionary<string,double> newBins = new Dictionary<string, double>();

    public string GetLabel(ShadingContext context)
    {
      parcelLookup.Clear();
      newBins.Clear();

      //organise parcels into bins
      foreach(var parcel in context.GetParcels())
      {
            parcelLookup[parcel] = context.GetReserveValue("Volume", parcel);

            string newBin = parcel.Substring(0,1); //first letter of parcel

            if(!newBins.TryGetValue(newBin, out double volume))
            {
                newBins[newBin] = 0;
            }
            newBins[newBin] += parcelLookup[parcel];
      }

      //find majority bin
      string bin = null;
      double max = -1;

      foreach(var newBin in newBins)
      {
        if(newBin.Value > max)
        {
          max = newBin.Value;
          bin = newBin.Key;
    }
      }

      return bin;
    }
}

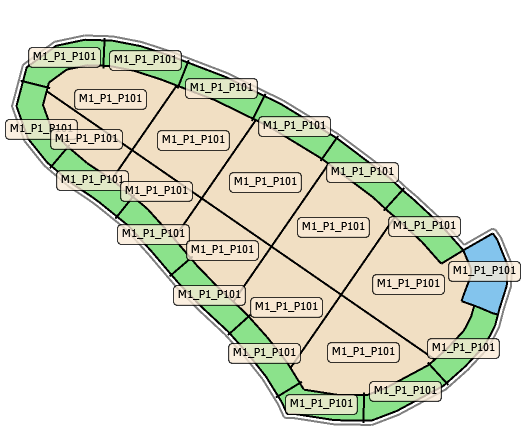

Export Name

Custom label including Mine - Pit - Stage names.

Copy

1
2
3
4
5
6
7
8
9
10
11
using System;
using Alastri.RR.Ui;
using Alastri.RR.Service;

public class LabelFormat : ILabel
{
    public string GetLabel(ShadingContext context)
    {
        return context.GetLevelName("Mine") + "_" + context.GetLevelName("Pit") + "_" + context.GetLevelName("Stage");
    }
}

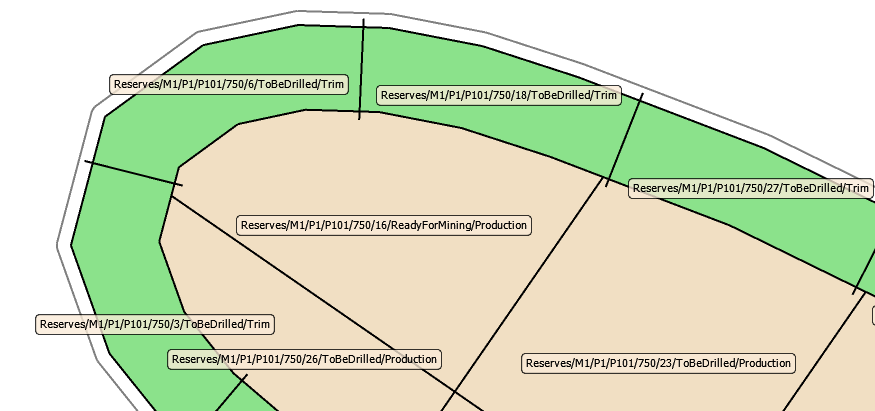

Export Description

Custom label including Full name + Blast Property + Blast Type.

Copy

1
2
3
4
5
6
7
8
9
10
11
12

using System;
using Alastri.RR.Ui;
using Alastri.RR.Service;

public class LabelFormat : ILabel
{
    public string GetLabel(ShadingContext context)
    {
        return context.GetFullName() + "/" + context.GetSolidPropertyString("InitialState") + "/" + context.BlastType;
    }
}
