Truck Limits

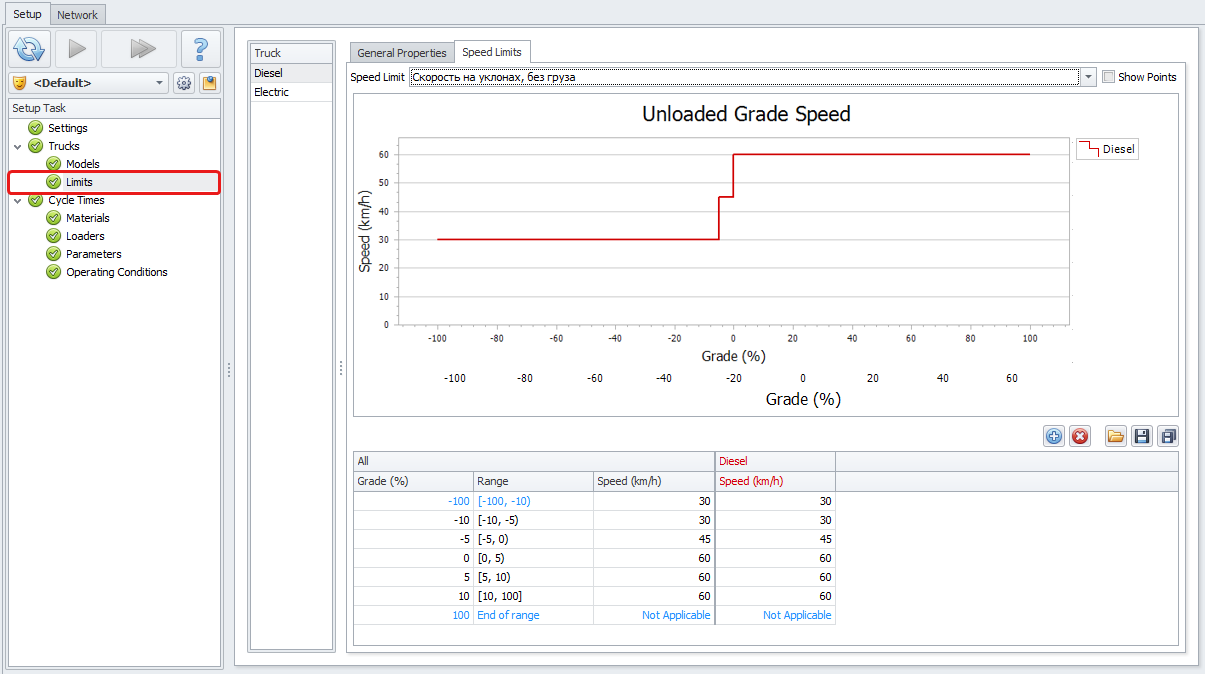

In the Truck Limits step, set the safe operating limits by truck type.

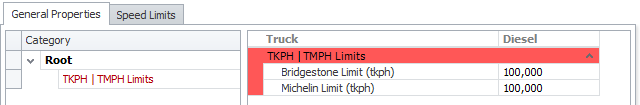

General Properties

Haul Infinity automatically adds TKPH delays to cycle times to keep tyres below the TKPH limit.

TKPH limits can be found in the tyre manufacturer’s handbook.
Michelin provides a temperature coefficient for calculating TKPH at different temperatures. This coefficient can sometimes be negative if the average haul speed is below 5 kilometers per hour. Essentially this means that there are no TKPH delays.
Haul Infinity calculates TKPH for every possible source and destination and then matches that with the limit set in this setup task. If the vehicle's calculated TKPH is greater than the TKPH limit for a haul in that period, then it will introduce delays (or it will slow down the truck to match the TKPH limit).

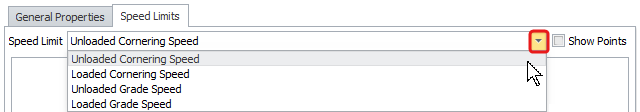

Select an applicable Speed Limit Type from the drop-down menu:

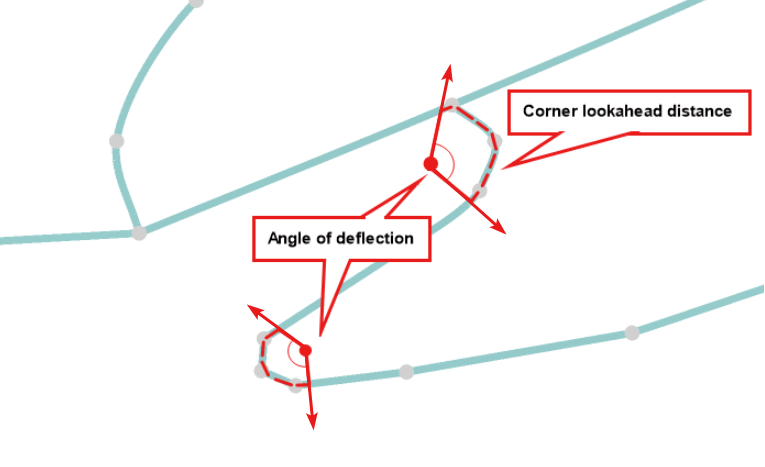

Used to slow down trucks at intersections and switchbacks. Corners are measured by the angle of deflection and the lookahead distance.

Haul Infinity automatically assigns speed limits to corners based on the inputs in this table.

For angles greater than ninety degrees, consider dropping the speed limit to 10 km/hr.

Cornering measures deflection rather than radius, because we are dealing with digitized points.

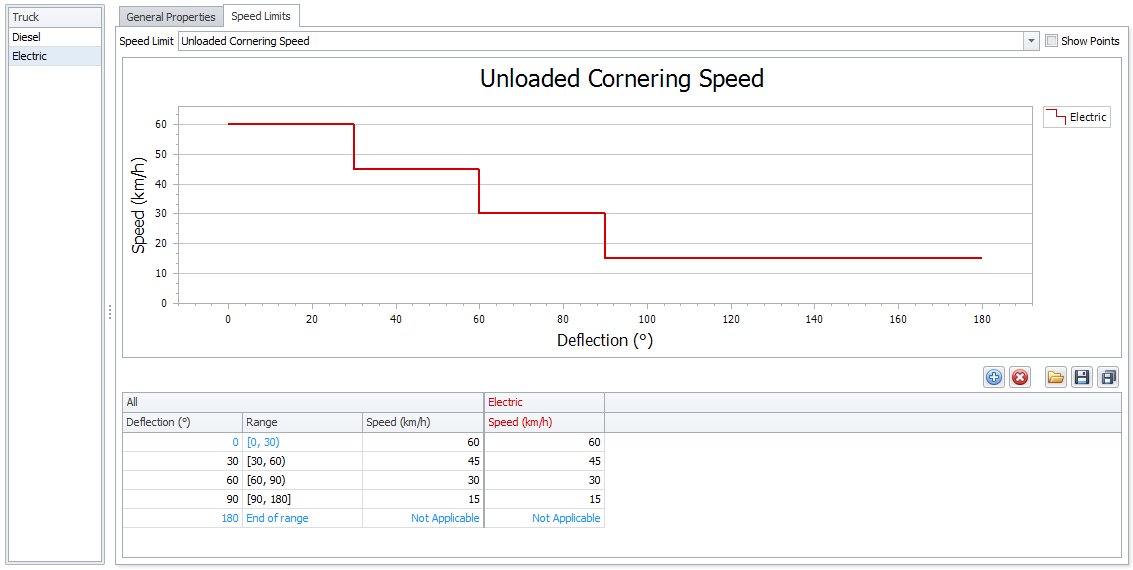

Cornering Speed Limits

Default speed limits that apply on all unsigned roads.

A truck is never allowed to exceed its loaded or unloaded speed limits.

Haul Infinity will always choose the lowest speed between the defaults and road signage.

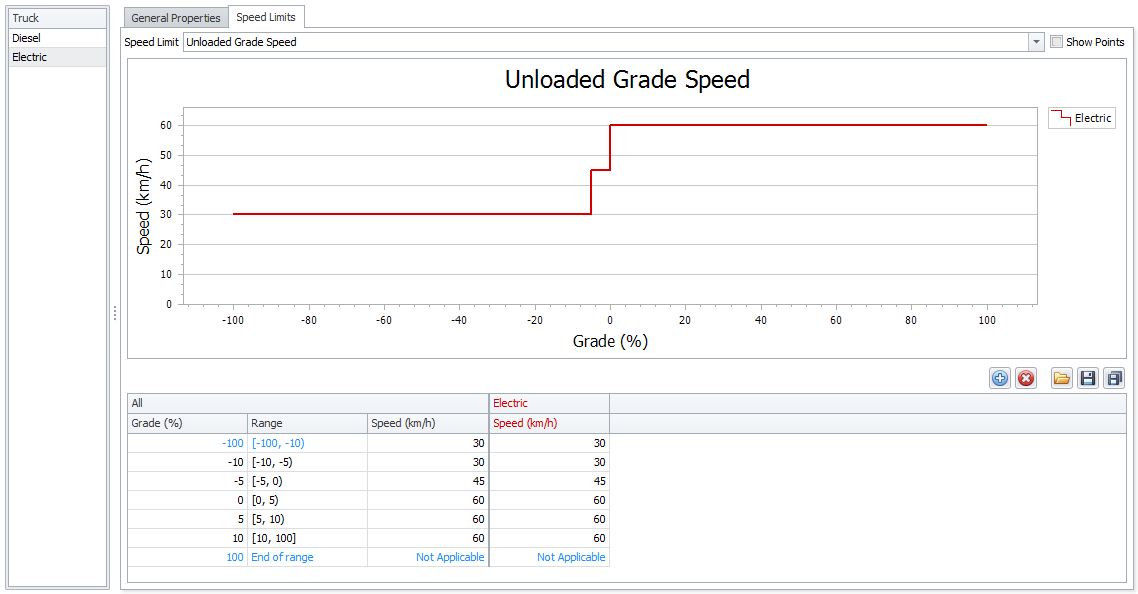

Grade Speed Limits

Speed Limit Ranges can be exported and imported for the selected truck.

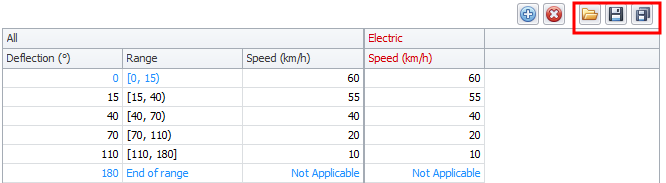

Importing and Exporting speed range

	Click to Insert a new range.
	Click to Remove the currently selected range (row).
	Click to Import speed limits ranges.
	Click to Export the speed limit ranges and chart for the currently selected speed limit type.
	These are written to a file with a .limitrange file extension.
	Click to Export All speed limit ranges and charts for all speed limit types.
	These are written to a file with a .limitranges file extension.

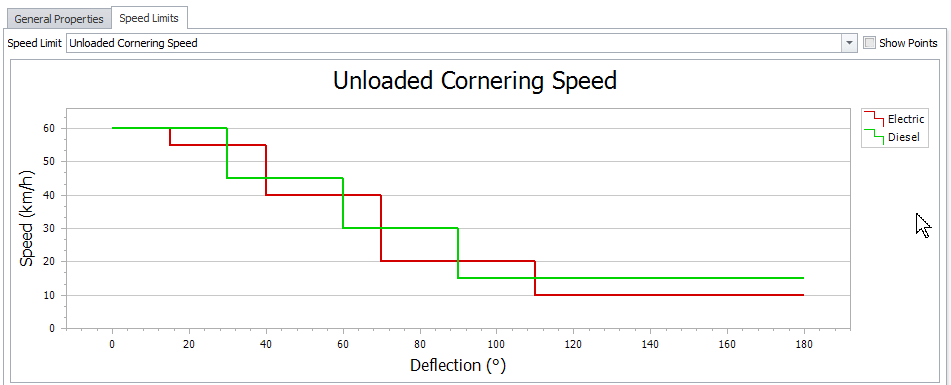

Toggle the Show Points check box to display points on the speed limits curves:

Toggling points display

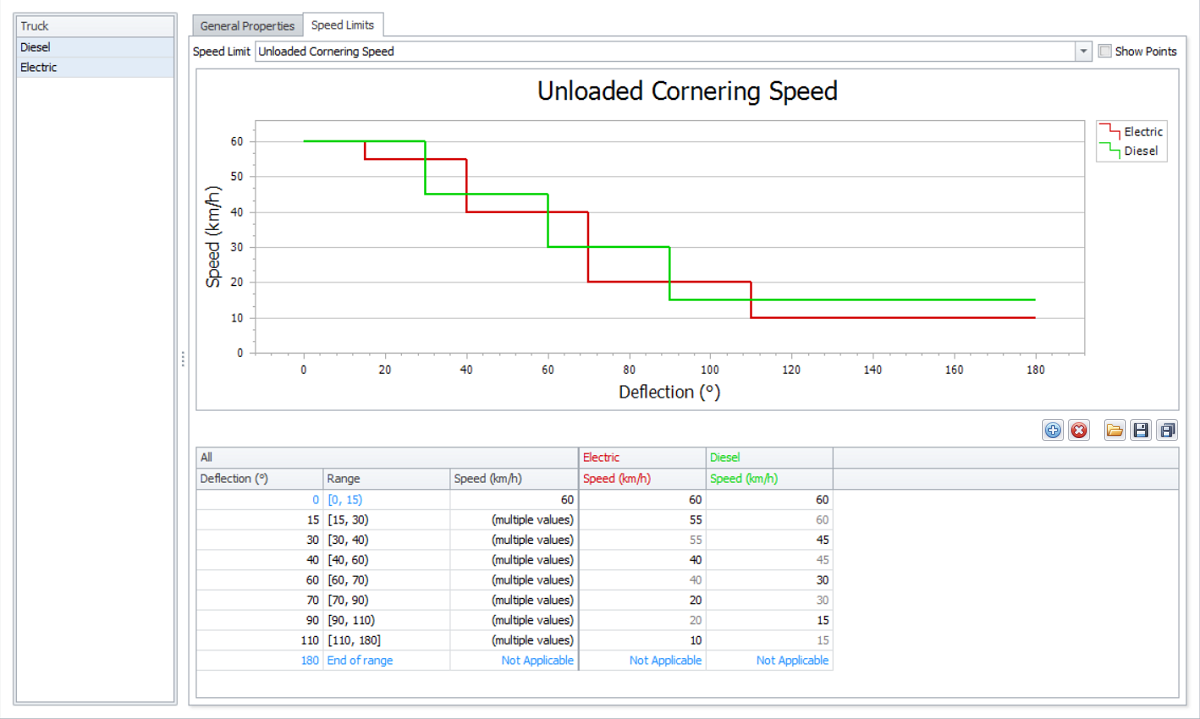

Select multiple trucks for comparison and bulk updating of values.

If the deflection/grade range doesn’t match across selected trucks, some inputs will appear grey.

Speed limits for multiple trucks
