Export Segments to DXF

Segments can be exported to a DXF file.

1. On the Network tab select Export > Segments to DXF.

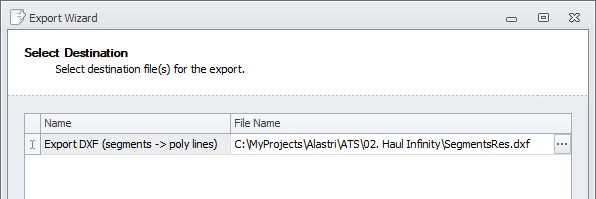

2. In the Export Wizard, select a destination directory for the export and click Next to continue. You can choose a file and overwrite it, or create a new file.

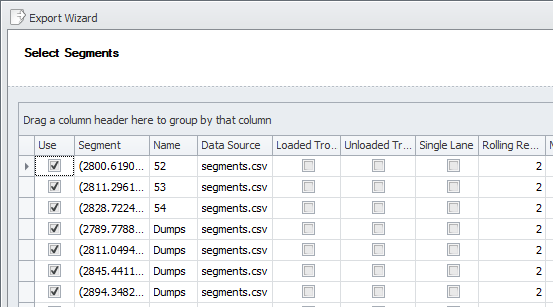

3. Select the Segments to be exported and click Next to continue.

   1. Click on the column title to sort A-Z and Z-A,

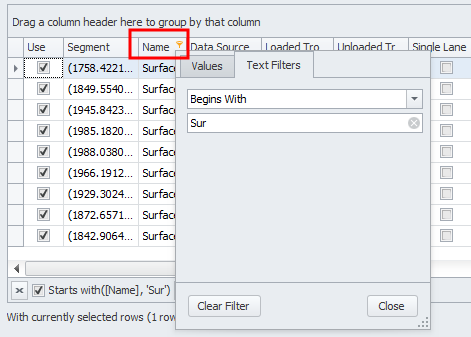

   2. Click the Filter icon to filter out the export results by certain parameters.



4. Wait for the export to complete and click Finish to exit the Wizard.
