Custom Shadings

• Creating a simple custom shading

• Simple Segments Shading

• Simple Blocks Shading

• Simple Nodes Shading



Creating a simple custom shading

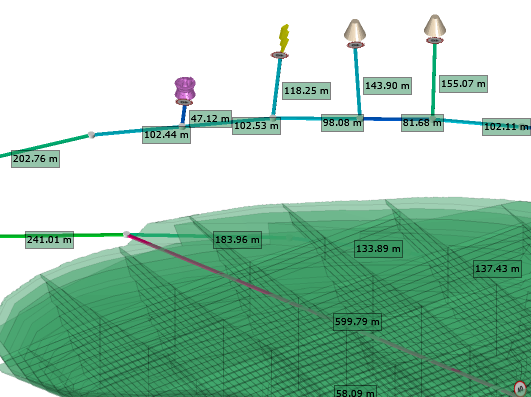

Simple Segments Shading

1. Select the gear icon next to the Shading dropdown. This opens the configuration dialog.

2. Click the blue plus icon to add a new shading set.

3. Rename the shading to "Distances".

4. Drop down the Shading Field and select “Distance”.

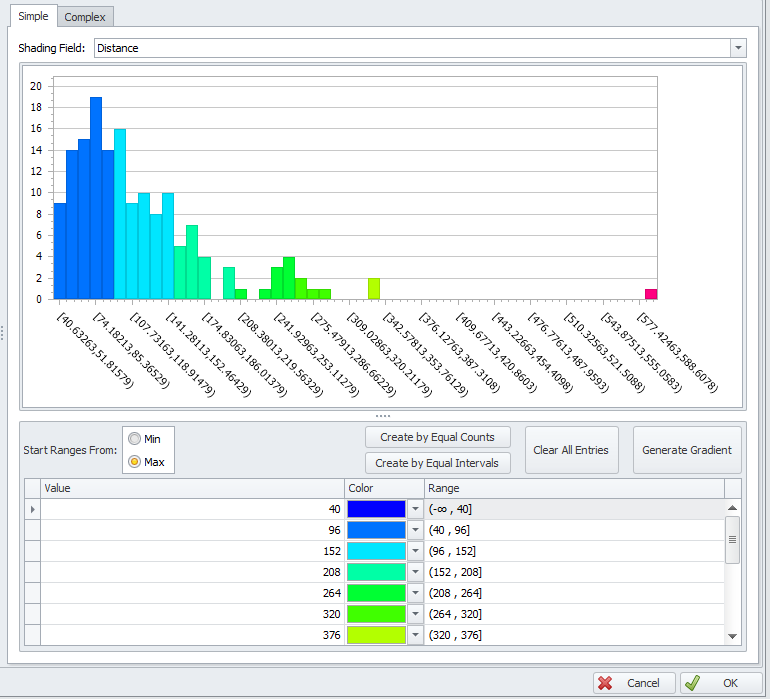

5. Click the Create by Equal Intervals button to populate 10 intervals.

6. Generate Gradient or assign a colour to each interval.

7. Click OK to accept.

8. Select the newly created shading from the Segments > Shadings dropdown and review the result.

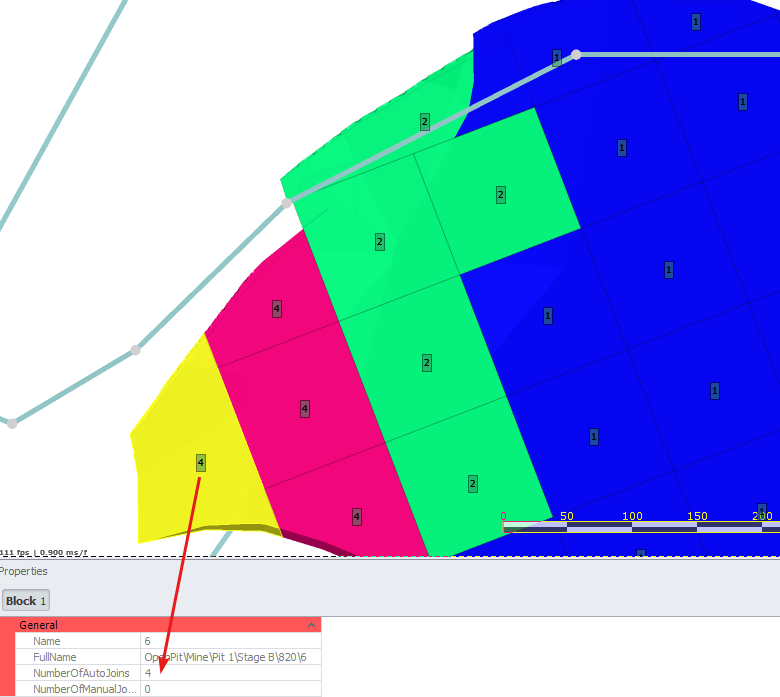

Simple Blocks Shading

1. Select the gear icon next to the Shading dropdown. This opens the configuration dialog.

2. Click the blue plus icon to add a new shading set.

3. Rename the shading to "AutoJoinCount".

4. Drop down the Shading Field and select “AutoJoinCount”.

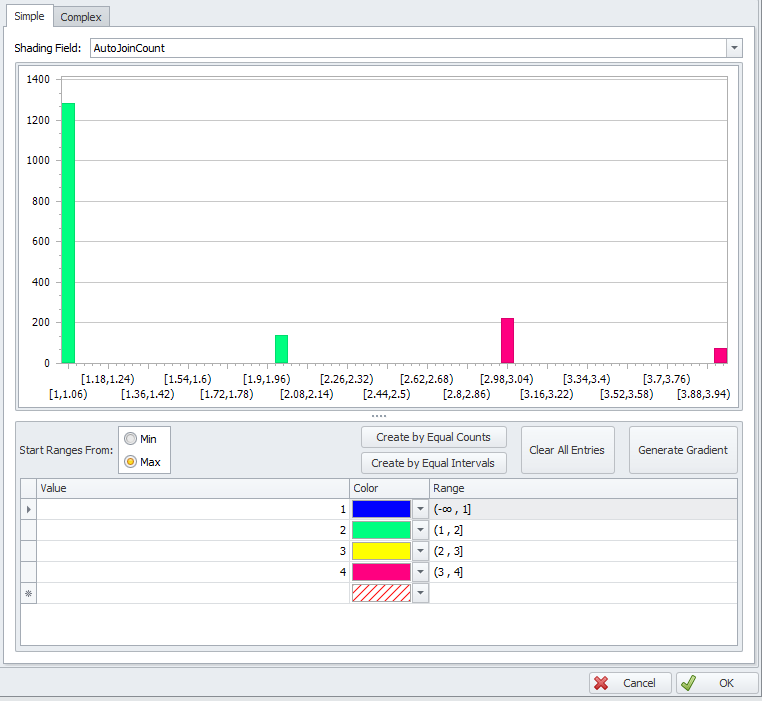

5. Click the Create by Equal Counts button to populate intervals.

6. Generate Gradient or assign a colour to each interval.

7. Click OK to accept.

8. Select the newly created shading from the Blocks > Shadings dropdown and review the result.

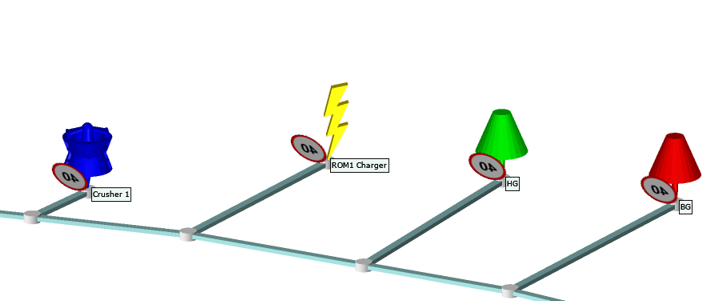

Simple Nodes Shading

1. Select the gear icon next to the Shading dropdown. This opens the configuration dialog.

2. Click the blue plus icon to add a new shading set.

3. Rename the shading to "byName".

4. Drop down the Shading Field and select “FullName”.

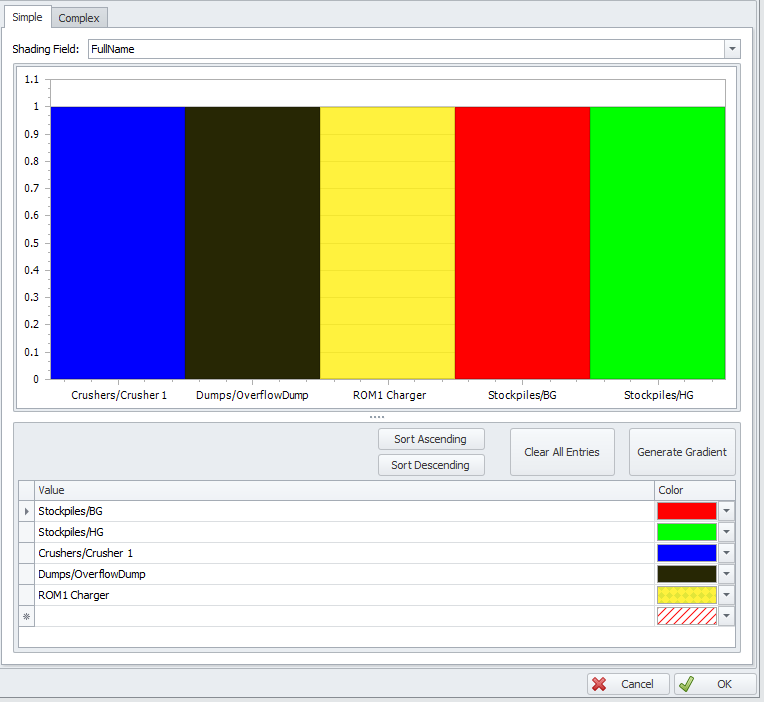

5. Populate names of nodes.

6. Assign a colour to each node or Generate Gradient.

7. Click OK to accept.

8. Select the newly created shading from the Nodes > Shadings dropdown and review the result.
