Parcel Subsets

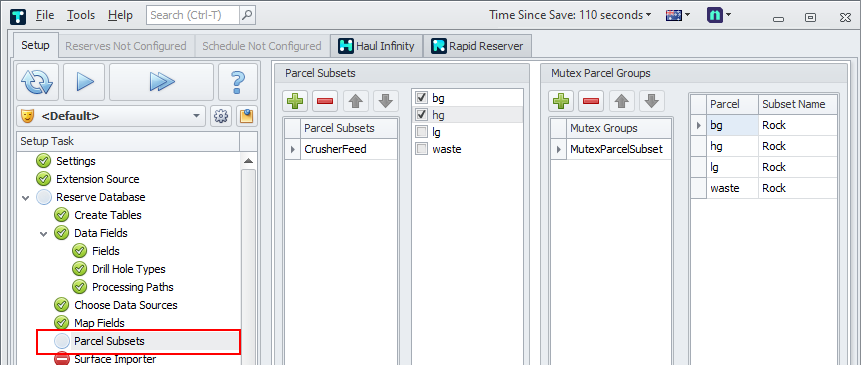

The parcel subsets you specify in Setup Task > Reserve Database > Parcel Subsets can be referenced in the Incentives, Destination Logic, Steps Logic, Constraints, and Product Specifications steps of the project. This makes it easy to update a definition (such as "Ore Materials") in many places at once.

Example Record Subsets

To create a parcel subset

1. Click thegreen plus button to create a new parcel subset.

2. Click in the Name field and rename accordingly.

3. Tick all ore materials in the parcel list.

Mutex Parcel Subsets

Mutex (mutually exclusive) parcel subsets can be referenced in the Swell Factors and Haulage Configurations steps of the project. They can be used to map all parcels into a simpler category set (ore type, rock type, weathering type, etc) to reduce data entry in the project setup.

To create a Mutex parcel subset

1. Click thegreen plus button to create a new Mutex subset.

2. Click in the Name field and rename accordingly.

3. Categorise each parcel in the project into appropriate groups.
