Calendar Export

The Calendar tab provides a visual representation of all works performed for the selected activity, arranged by time intervals (Periods). You may need to export this view for later use in reports and presentations. Alastri Production Scheduler provides three options for the Calendar exporting:

  1. to Excel document in ".xlsx" format (“Export to Excel” option),

  2. to text file in “.txt” format (“Export to Text/CSV” option),

  3. to CSV file in “.csv” format (“Export to Text/CSV” option).

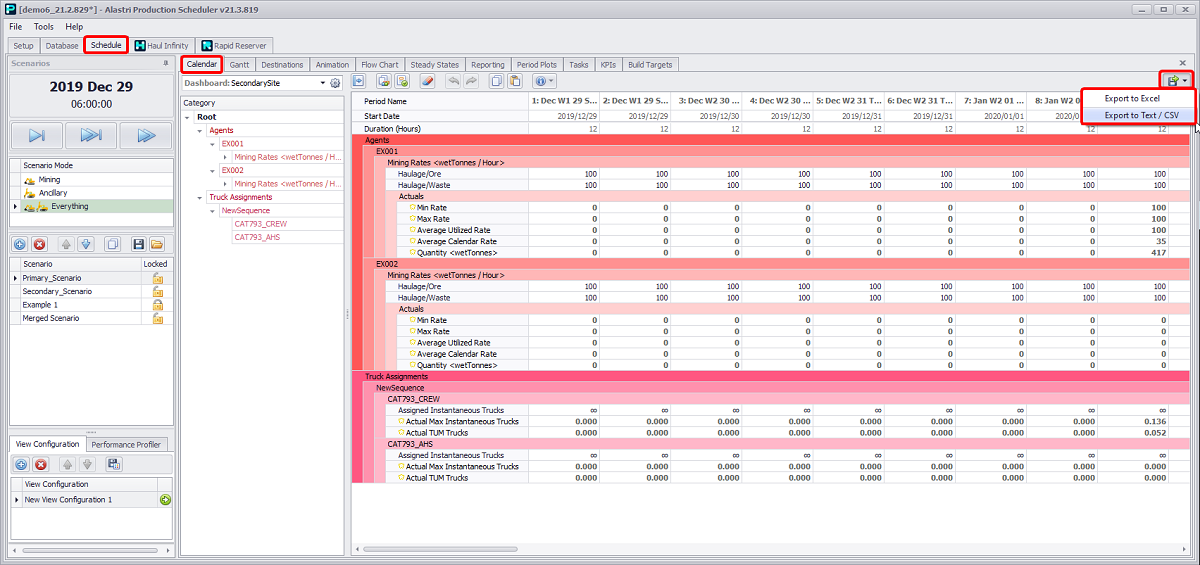

Calendar export options button

To export a Calendar

  1. Go to the Schedule tab.

  2. Run the schedule.

  3. Open the Calendar tab.

  4. Click the export icon at the top right corner of a screen.

  5. Select from the drop-down an export option required:

    1. To export calendar as a ".xlsx" file for further use in Microsoft Excel - select the "Export to Excel" option.

    2. To export calendar to a text file in ".txt" format for further use in various text editors - select "Export to Text/CSV" and from the drop-down list of available saving formats in the Save as type field select "Text Files (*.txt)".

    3. To export the calendar to a ".csv" file - select "Export to Text/CSV" and select "CSV Files (*.cvs)" from the drop-down list of available saving formats in the Save as type field.

Before exporting the calendar, make sure that in the Category panel on the left, you have select proper categories to include in the saved file.
